  1. REMOVE RADIATOR GRILLE

    See step  4

  2. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

    Refer to REMOVAL [08/2019 - 08/2021]

  3. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET (w/ License Plate Bracket)
    1. Remove the 2 screws to remove the front bumper extension mounting bracket.
      GTY441086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE LOWER FRONT VALANCE PANEL (w/ Garnish)

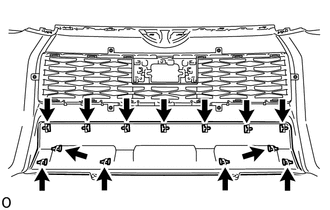

    1. Remove the 13 outside moulding retainers and lower front valance panel as shown in the illustration.
      GTY924772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE LOWER NO. 1 RADIATOR GRILLE

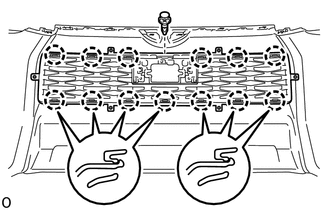

    1. Remove the clip.
      GTY945291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 13 claws to remove the lower No. 1 radiator grille.
  6. REMOVE FRONT BUMPER REINFORCEMENT STOPPER RH (for RH Side)

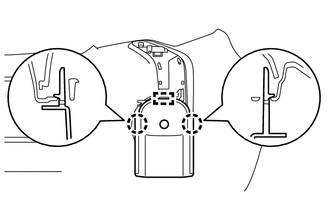

    1. Detach the 2 claws and guide to remove the front bumper reinforcement stopper RH.
      GTY441098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FOG LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  8. REMOVE FOG LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  9. REMOVE FOG LIGHT COVER LH

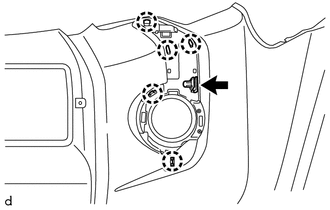

    1. Remove the outside moulding retainer.
      GTY441099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 5 claws to remove the fog light cover LH.
  10. REMOVE FOG LIGHT COVER RH

    HINT:

    Use the same procedure as for the LH side.
