Disassembly [08/2015 - 08/2019]: Procedure

  1. REMOVE RADIATOR GRILLE

    See step  4

  2. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET (w/ License Plate Bracket)
    1. Remove the 2 screws to remove the front bumper extension mounting bracket.
      GTY441086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

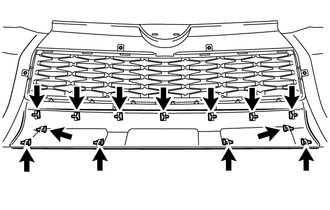

  3. REMOVE LOWER FRONT VALANCE PANEL (w/ Garnish)
    1. Remove the 13 outside moulding retainers and lower front valance panel as shown in the illustration.
      GTY441089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

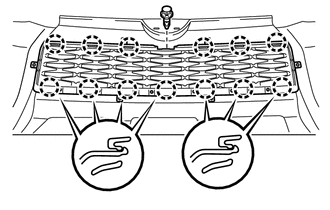

  4. REMOVE LOWER NO. 1 RADIATOR GRILLE
    1. Remove the clip.
      GTY454155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 13 claws to remove the lower No. 1 radiator grille.
  5. REMOVE FRONT BUMPER REINFORCEMENT STOPPER RH (for RH Side)
    1. Detach the 2 claws and guide to remove the front bumper reinforcement stopper RH.
      GTY441098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FOG LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  7. REMOVE FOG LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE FOG LIGHT COVER LH
    1. Remove the outside moulding retainer.
      GTY441099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 5 claws to remove the fog light cover LH.
  9. REMOVE FOG LIGHT COVER RH

    HINT:

    Use the same procedure as for the LH side.
