Removal [08/2021 - ]: Procedure

  1. REMOVE FRONT BUMPER COVER
  2. REMOVE FRONT TELEVISION CAMERA ASSEMBLY

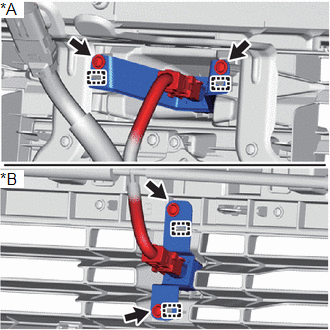

    1. Disconnect the connector.
      GTY1027032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Mudguard
      *B w/o Mudguard
    2. Remove the 2 screws.
    3. Disengage the 2 guides to remove the front television camera assembly.
