Removal [07/2020 - ]: Procedure

REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 19 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 19 [10/2022 - ]
REMOVE IGNITION COIL ASSEMBLY
Refer to PROCEDURE - Step 2

REMOVE SPARK PLUG

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

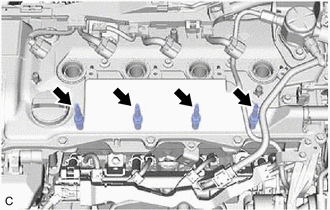

Remove the 4 spark plugs from the cylinder head sub-assembly.

NOTE:

If a spark plug has been struck or dropped, replace it.

HINT:

Arrange the removed parts in the correct order.
