Removal [07/2020 - 10/2022]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [07/2020 - ]

  2. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [07/2020 - 10/2022]

  3. DRAIN COOLANT (for Inverter)

    Refer to PROCEDURE - Step 1 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 1 [12/2021 - ]

  4. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  5. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 3

  6. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 4

  7. REMOVE ECM

    Refer to REMOVAL [07/2020 - 10/2022]

  8. REMOVE NO. 2 INVERTER PROTECTOR
    1. Remove the 2 bolts and No. 2 inverter protector from the inverter with converter assembly.
      GTY877752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT ENGINE ROOM MAIN WIRE
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:

    Do not allow any foreign matter or water to enter the inverter with converter assembly.

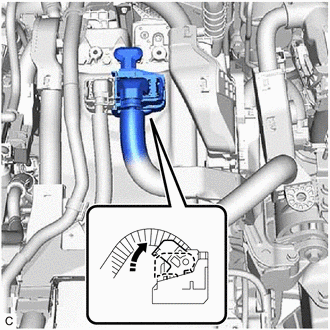

    1. Move the lock lever as shown in the illustration and disconnect the inverter with converter assembly connector.
      NOTE:
      • Do not touch the waterproof seal or terminals of the connector.
      • Do not damage the terminals, connector housing or inverter with converter assembly during disconnection.
      • Cover the hole where the cable was connected with tape (non-residue type) or equivalent to prevent entry of foreign matter.
      • Insulate the disconnected terminals with insulating tape.
      GTY1000470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

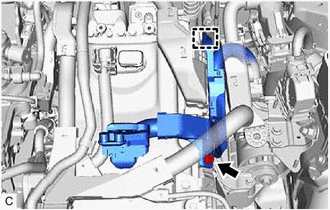

    2. Remove the bolt.
      GTY1000468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the clamp and disconnect the engine room main wire.
  10. REMOVE CONNECTOR COVER ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves.

    1. Remove the bolt (B).
      GTY1000695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt (A)
      *b Bolt (B)
    2. Using a T25 "TORX" socket wrench, remove the bolt (A) and connector cover assembly from the inverter with converter assembly.
      NOTE:
      • Do not touch the connector cover assembly waterproof seal.
      • Do not allow any foreign matter or water to enter the inverter with converter assembly.
  11. CHECK TERMINAL VOLTAGE
    WARNING:

    Be sure to wear insulated gloves.

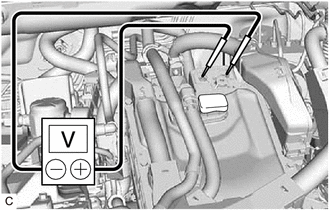

    1. Using a voltmeter, measure the voltage between the terminals of the 2 phase connectors.

      Standard Voltage

      0 V

      NOTE:

      Do not allow any foreign matter or water to enter the inverter with converter assembly.

      HINT:

      Use a measuring range of DC 750 V or more on the voltmeter.

      GTY1000463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. TEMPORARILY INSTALL CONNECTOR COVER ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves.

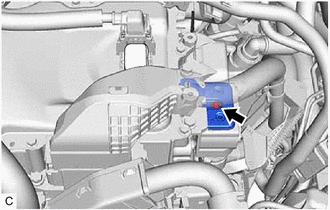

    1. Temporarily install the connector cover assembly to the inverter with converter assembly.
      GTY1000461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T25 "TORX" socket wrench, install the bolt.

      Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

      NOTE:
      • Do not touch the connector cover assembly waterproof seal.
      • Do not allow any foreign matter or water to enter the inverter with converter assembly.
  13. DISCONNECT FLOOR UNDER WIRE
    WARNING:

    Be sure to wear insulated gloves.

    1. Remove the 2 bolts and disconnect the HV floor under wire from the inverter with converter assembly.
      GTY1000515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Waterproof Seal
      NOTE:
      • Do not damage the terminals, interlock connector or inverter with converter assembly during disconnection.
      • Do not touch the waterproof seal or terminals of the connector.
      • Do not allow any foreign matter or water to enter the inverter with converter assembly.
      • Although the connector may feel loose, this is not due to a malfunction.
    2. Remove the 2 nuts and disconnect the HV floor under wire from the inverter with converter assembly.
      GTY1001266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

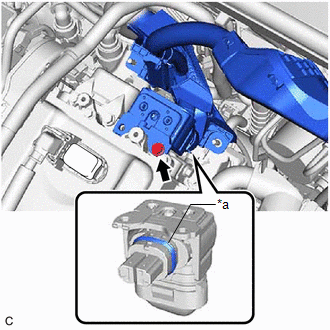

    3. Remove the bolt and disconnect the HV floor under wire from the inverter with converter assembly.
      NOTE:
      • Do not touch the waterproof seal or terminals of the connector.
      • Do not damage the terminals, connector housing or inverter with converter assembly during disconnection.
      • Cover the hole where the cable was connected with tape (non-residue type) or equivalent to prevent entry of foreign matter.
      • Do not allow any foreign matter or water to enter the inverter with converter assembly.
      • Insulate the disconnected terminals with insulating tape.
      GTY1001202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Waterproof Seal
  14. DISCONNECT HV AIR CONDITIONING WIRE
    WARNING:

    Be sure to wear insulated gloves.

    1. Remove the 2 bolts.
      GTY1000288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Waterproof Seal
    2. Disengage the clamp and disconnect the HV air conditioning wire from the inverter with converter assembly.
      NOTE:
      • Do not touch the waterproof seal or terminals of the connector.
      • Do not damage the terminals, connector housing or inverter with converter assembly during disconnection.
      • Cover the hole where the cable was connected with tape (non-residue type) or equivalent to prevent entry of foreign matter.
      • Do not allow any foreign matter or water to enter the inverter with converter assembly.
      • Insulate the disconnected terminals with insulating tape.
  15. REMOVE WIRE HARNESS CLAMP BRACKET

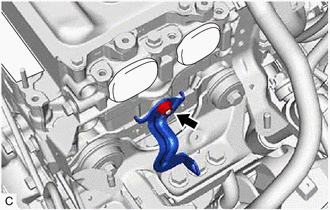

    1. Remove the nut and wire harness clamp bracket.
      GTY1000476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. DISCONNECT ENGINE WIRE
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:

    Do not allow any foreign matter or water to enter the inverter with converter assembly.

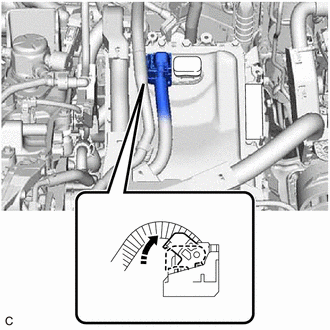

    1. Move the lock lever as shown in the illustration and disconnect the inverter with converter assembly connector.
      NOTE:
      • Do not touch the waterproof seal or terminals of the connector.
      • Do not damage the terminals, connector housing or inverter with converter assembly during disconnection.
      • Cover the hole where the cable was connected with tape (non-residue type) or equivalent to prevent entry of foreign matter.
      • Insulate the disconnected terminals with insulating tape.
      GTY1000632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY874646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disengage the 3 clamps (A) and disconnect the No. 1 fuel vapor feed hose.

    3. Remove the bolt.
    4. Disengage the 2 clamps (B).
    5. Disconnect the generator temperature sensor connector.
      GTY872572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Generator Temperature Sensor Connector
      *b Resolver (Transmission Fluid Temperature Sensor) Connector
      *c Shift Lever Position Sensor Connector
    6. Disconnect the resolver (transmission fluid temperature sensor) connector.
    7. Disconnect the shift lever position sensor connector.
    8. Disengage the clamp.
    9. Disengage the 2 clamps.
      GTY880215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Remove the bolt.
      GTY1000656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Remove the bolt.
      GTY1000654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

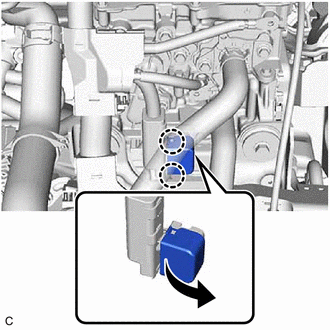

    12. Disengage the 2 claws and open the engine wire terminal cover.
      GTY1000628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    13. Remove the nut.
      GTY1001299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    14. Disengage the 2 clamps and disconnect the engine wire from the inverter with converter assembly.
  17. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Remove the nut and disconnect the transmission control cable assembly from the control shaft lever.
      GTY922122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, disengage the 4 claws and disconnect the transmission control cable assembly with the clip from the No. 1 transmission control cable bracket.
      GTY922121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver, disengage the 2 claws and remove the clip from the transmission control cable assembly.
      GTY745662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 bolts and disconnect the transmission control cable assembly from the inverter with converter assembly.
      GTY880198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. DISCONNECT NO. 1 INVERTER COOLING HOSE
    1. Slide the clip and disconnect the No. 1 inverter cooling hose from the inverter with converter assembly.
      NOTE:

      Put pieces of cloth into the pipe and disconnected hose or cover the pipe and hose with plastic bags to prevent entry of foreign matter.

      GTY880200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. DISCONNECT NO. 4 INVERTER COOLING HOSE
    1. Slide the clip and disconnect the No. 4 inverter cooling hose from the inverter with converter assembly.
      NOTE:

      Put pieces of cloth into the pipe and disconnected hose or cover the pipe and hose with plastic bags to prevent entry of foreign matter.

      GTY880202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE INVERTER COVER
    WARNING:

    Be sure to wear insulated gloves.

    1. Remove the 2 bolts and inverter cover from the inverter with converter assembly.
      NOTE:
      • Make sure to pull the inverter cover straight out, as a connector is connected to the inside of the inverter cover.
      • Do not touch the waterproof seal of the inverter cover.
      • Do not allow any foreign matter or water to enter the inverter with converter assembly.
      • When removing the inverter cover, do not pull the areas (A) as they may deform.
      • Make sure that the interlock is installed to the inverter cover.
      • Do not remove or excessively tighten the screw of the inverter cover.
        GTY596587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Inverter Cover
        *a Screw
      • Although the inverter cover may feel loose, this is not due to a malfunction.

      HINT:

      If necessary, use a screwdriver with its tip wrapped with protective tape as shown in the illustration to remove the inverter cover.

      GTY866747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      GTY928959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Interlock
      *b Waterproof Seal
  21. DISCONNECT MOTOR CABLE
    WARNING:

    Be sure to wear insulated gloves.

    1. Using an insulated tool, remove the 6 bolts.
      GTY1000638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not allow any foreign matter or water to enter the inverter with converter assembly.
      • Do not touch the waterproof seal or terminals of the connector.

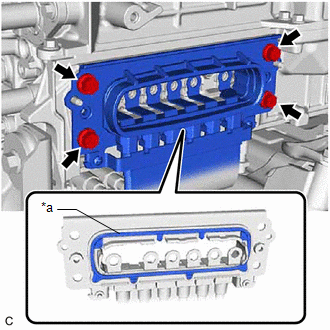

    2. Remove the 4 bolts and disconnect the motor cable from the inverter with converter assembly.
      GTY1001095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Waterproof Seal
      NOTE:
      • Do not allow any foreign matter or water to enter the inverter with converter assembly.
      • Do not touch the waterproof seal or terminals of the connector.
      • Do not damage the terminals, connector housing or inverter with converter assembly during disconnection.
      • Insulate the disconnected terminals with insulating tape.
      • After disconnecting the motor cable, wrap it with a plastic bag or equivalent to protect it.
      • Cover the hole where the cable was connected with tape (non-residue type) or equivalent to prevent entry of foreign matter.
      • To prevent the wire harness from being caught, make sure to bundle the wire harness using insulating tape or equivalent.
        GTY880262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE WIRE HARNESS CLAMP BRACKET

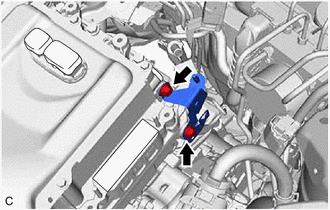

    1. Remove the 2 bolts and wire harness clamp bracket from the inverter with converter assembly.
      GTY1000625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE INVERTER WITH CONVERTER ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves.

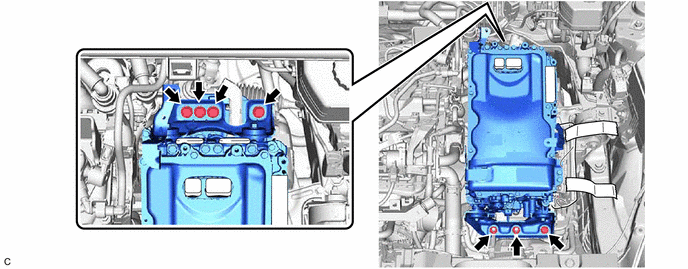

    1. Remove the 5 bolts, 2 nuts and inverter with converter assembly.
      GTY1000623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • When removing the inverter with converter assembly, be careful not to damage the parts around it.
      • To prevent damage, do not hold the inverter with converter assembly by the connectors, brackets or cooling pipes.
      • To prevent damage due to static electricity, do not touch the terminals of the disconnected connectors.

      HINT:

      Even after the coolant is drained, coolant remains in the inverter due to its internal structure. Therefore, seal or cover the pipes when removing the inverter with converter assembly so that coolant does not spill out.

  24. REMOVE NO. 1 INVERTER BRACKET
    NOTE:
    GTY998941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Bottom of Inverter with Converter Assembly
    *b Support

    Make sure to support the inverter with converter assembly at the positions shown in the illustration, otherwise it may be damaged.

    1. Set the inverter with converter assembly on wooden blocks.
      GTY907971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
    2. Remove the 2 bolts and No. 1 inverter bracket from the inverter with converter assembly.
  25. REMOVE NO. 2 INVERTER BRACKET
    1. Remove the 2 bolts and No. 2 inverter bracket from the inverter with converter assembly.
      GTY924662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
  26. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Remove the bolt and wire harness clamp bracket from the inverter with converter assembly.
      GTY880246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and wire harness clamp bracket from the inverter with converter assembly.
      GTY880247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and wire harness clamp bracket from the inverter with converter assembly.
      GTY880248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE HYBRID INVERTER PROTECTOR ASSEMBLY
    1. Remove the 4 bolts and hybrid inverter protector assembly from the inverter with converter assembly.
      GTY880237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
