Removal [07/2020 - ]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

  2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

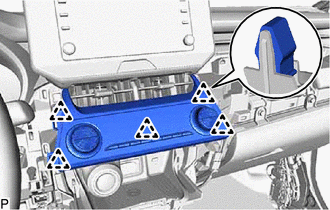

    1. Disengage the 5 clips.
      GTY989585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

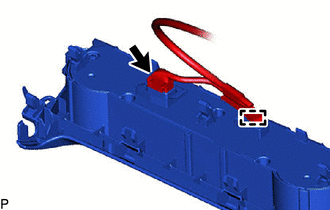

    2. Disengage the clamp.
      GTY989095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector to remove the air conditioning control assembly.
