Removal [07/2020 - 10/2022]: Procedure

  1. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

  2. REMOVE EGR VALVE ASSEMBLY

    Refer to REMOVAL [07/2020 - 10/2022]

  3. REMOVE PURGE VALVE (PURGE VSV)

    Refer to REMOVAL [07/2020 - ]

  4. DISCONNECT ENGINE WIRE
    1. Disconnect the No. 5 engine wire connector.
      GTY880685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and disconnect the engine wire from the cylinder head sub-assembly.
    3. Remove the bolt.
      GTY880686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the wire harness clamp and disconnect the engine wire from the intake manifold.
  5. DISCONNECT NO. 3 WATER BY-PASS PIPE
    1. Slide the clip and disconnect the No. 5 water by-pass hose from the No. 3 water by-pass pipe.
      GTY880687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an 8 mm socket wrench, remove the bolt and disconnect the No. 3 water by-pass pipe from the intake manifold.
  6. REMOVE NO. 2 WATER BY-PASS PIPE
    1. Disengage the wire harness clamp and disconnect the HV air conditioning wire.
      GTY932569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an 8 mm socket wrench, remove the 2 bolts (A) and separate the No. 2 water by-pass pipe from the intake manifold.
    3. Remove the bolt (B) and No. 2 water by-pass pipe from the cylinder block sub-assembly.
  7. REMOVE NO. 2 FUEL VAPOR FEED HOSE

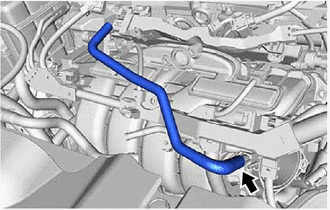

    1. Remove the No. 2 fuel vapor feed hose from the intake manifold.
      GTY1000405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE INTAKE MANIFOLD

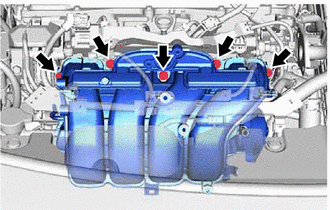

    1. GTY1000366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      w/o Stud Bolt:

      1. Remove the 5 bolts and intake manifold from the cylinder head sub-assembly.
    2. w/ Stud Bolt:

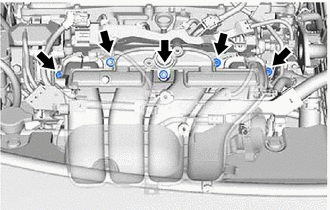

      GTY1001246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 3 bolts and 2 nuts.
      2. Using an E8 "TORX" socket wrench, remove the 2 stud bolts and intake manifold from the cylinder head sub-assembly.
        GTY1000367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET
    1. Remove the No. 1 intake manifold to head gasket from the intake manifold.
      GTY754160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 ENGINE COVER
    1. Remove the clip and No. 1 engine cover.
      GTY771528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
