Removal [07/2020 - ]: Procedure

  1. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    See step  1

  2. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 1 [12/2021 - ]

  3. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 2 [12/2021 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]

  4. REMOVE OIL COOLER ASSEMBLY

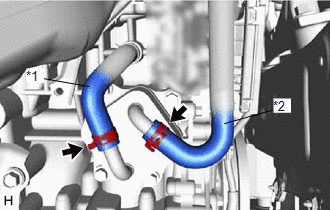

    1. Slide the 2 clips and disconnect the No. 1 water by-pass hose and No. 2 water by-pass hose from the oil cooler assembly.
      GTY994160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Water By-pass Hose
      *2 No. 2 Water By-pass Hose
    2. Remove the 4 bolts and oil cooler assembly from the cylinder block sub-assembly.
      GTY848904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 oil cooler gaskets from the oil cooler assembly.
      GTY925630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. w/ Filter:
      1. Remove the oil control valve filter from the cylinder block sub-assembly.
        GTY848905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
