Removal [07/2020 - ]: Procedure

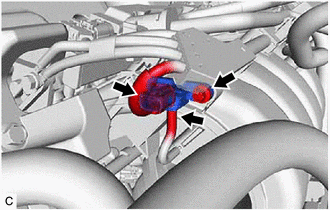

  1. REMOVE E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)
    1. Disconnect the E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) connector.
      GTY999864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the vacuum hose from the E.F.I. vacuum sensor assembly (manifold absolute pressure sensor).
    3. Using an 8 mm socket wrench, remove the bolt and E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) from the intake manifold.
