Removal [07/2020 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [07/2020 - 10/2022] , or refer to REMOVAL [10/2022 - ]

  2. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

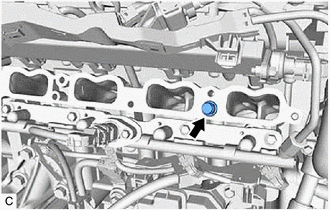

    1. Remove the PCV valve (ventilation valve sub-assembly) from the cylinder head sub-assembly.
      GTY998641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
