Removal [10/2022 - ]: Procedure

Refer to PROCEDURE - Step 1

Refer to REMOVAL [10/2022 - ]

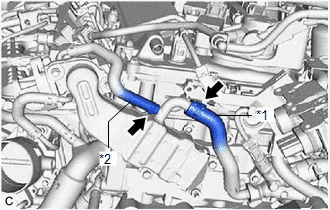

1. Slide the 2 clips and disconnect the No. 3 water by-pass hose and No. 4 water by-pass hose from the EGR cooler assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 3 Water By-pass Hose
   *2	No. 4 Water By-pass Hose

2. Type A:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Bolt or Nut

   1. Remove the 3 bolts, 2 nuts and EGR cooler assembly from the cylinder head sub-assembly and EGR valve assembly.
3. Type B:
   1. Remove the 2 bolts, 3 nuts and EGR cooler assembly from the cylinder head sub-assembly and EGR valve assembly.
4. Remove the EGR valve gasket from the EGR cooler assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	EGR Valve Gasket
   *2	EGR Cooler Gasket

5. Remove the EGR cooler gasket from the EGR cooler assembly.
