Removal [07/2020 - 10/2022]: Procedure

DRAIN ENGINE COOLANT (for Engine)
Refer to PROCEDURE - Step 1 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 1 [12/2021 - ]
REMOVE INVERTER WITH CONVERTER ASSEMBLY
Refer to REMOVAL [07/2020 - 10/2022]

REMOVE EGR COOLER ASSEMBLY

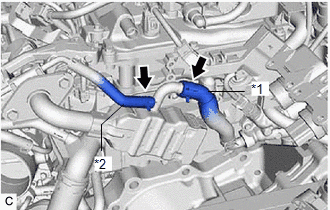

Slide the 2 clips and disconnect the No. 3 water by-pass hose and No. 4 water by-pass hose from the EGR cooler assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	No. 3 Water By-pass Hose
*2	No. 4 Water By-pass Hose

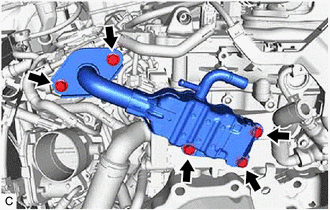

Remove the 5 bolts and EGR cooler assembly from the cylinder head sub-assembly and EGR valve assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

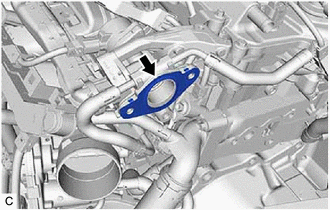

Remove the EGR valve gasket from the EGR valve assembly.

Remove the EGR cooler gasket from the EGR cooler assembly.
