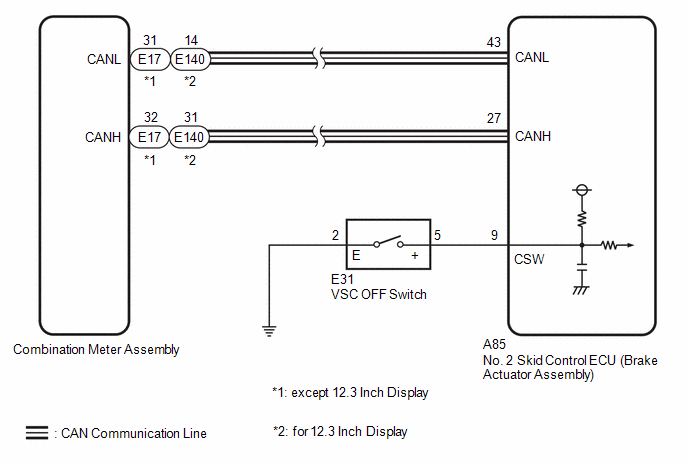

VSC OFF Switch Circuit [10/2022 - ]: Wiring Diagram

GTY1117948

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
