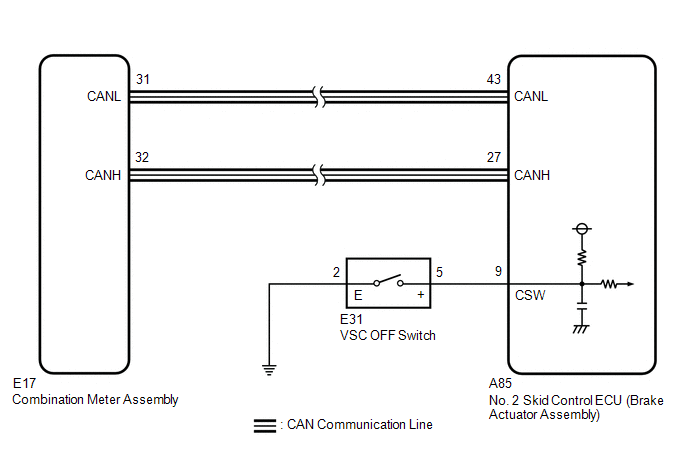

VSC OFF Switch Circuit [07/2020 - 10/2022]: Wiring Diagram

GTY974754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
