Removal [07/2020 - ]: Procedure

  1. REMOVE REAR WHEEL HOUSE FRONT PLATE

    See step  1

  2. REMOVE SIDE MUDGUARD SUB-ASSEMBLY

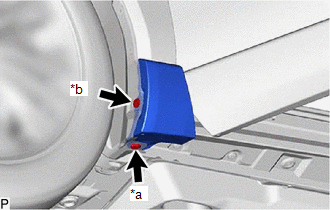

    1. Remove the clip and grommet.
      GTY1013453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip
      *b Grommet

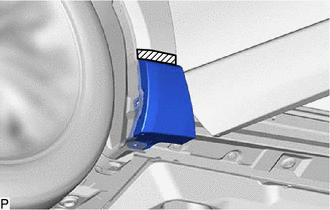

    2. Apply protective tape around the side mudguard sub-assembly as shown in the illustration.
      GTY1014096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

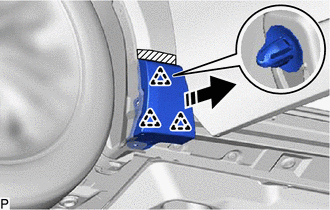

    3. Disengage the 3 clips as shown in the illustration to remove the side mudguard sub-assembly.
      GTY1013584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE BODY ROCKER PANEL MOULDING ASSEMBLY

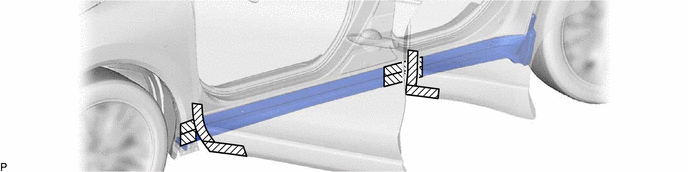

    1. Apply protective tape around the body rocker panel moulding assembly and doors as shown in the illustration.
      GTY1014356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape - -

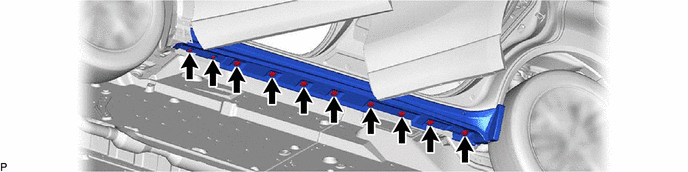

    2. Remove the 10 clips.
      GTY1014541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

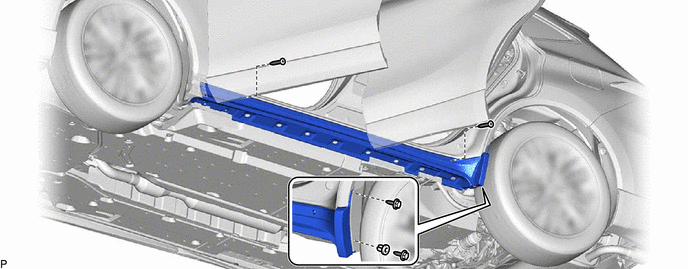

    3. Remove the 4 screws and grommet.
      GTY1014539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

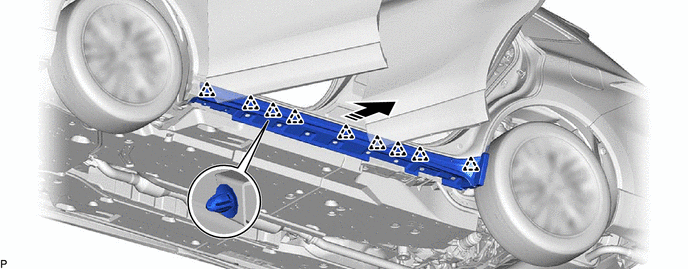

    4. Disengage the 9 clips as shown in the illustration to remove the body rocker panel moulding assembly.
      GTY1013870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
