Removal [07/2020 - ]: Procedure

  1. REMOVE REAR WHEEL HOUSE FRONT PLATE
    1. Remove the screw.

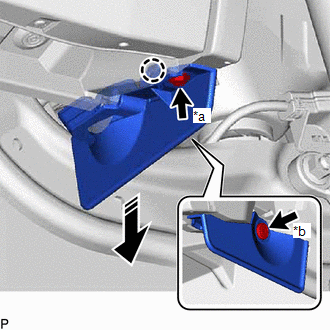

      GTY1013531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screw
      *b Clip
      Remove in this Direction
    2. Remove the clip.
    3. Disengage the claw to remove the rear wheel house front plate as shown in the illustration.
