Components [07/2020 - ]

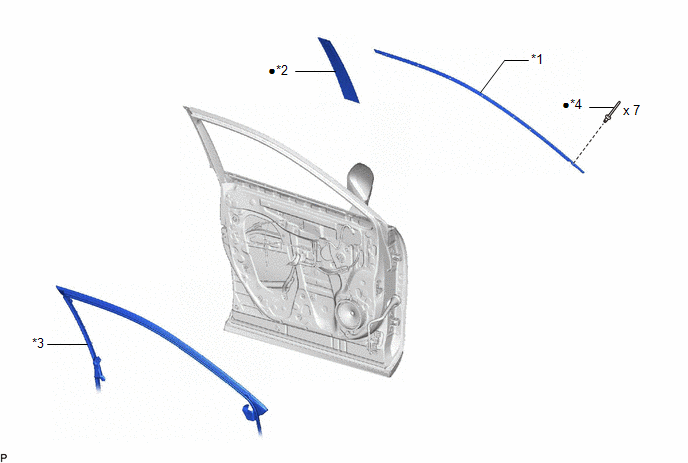

Fig 1: Front Door Window Frame Moulding Replacement Components
GTY1014899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY *2 FRONT DOOR REAR WINDOW FRAME MOULDING
*3 FRONT DOOR WEATHERSTRIP *4 RIVET
• Non-reusable part - -
