Components [07/2020 - ]

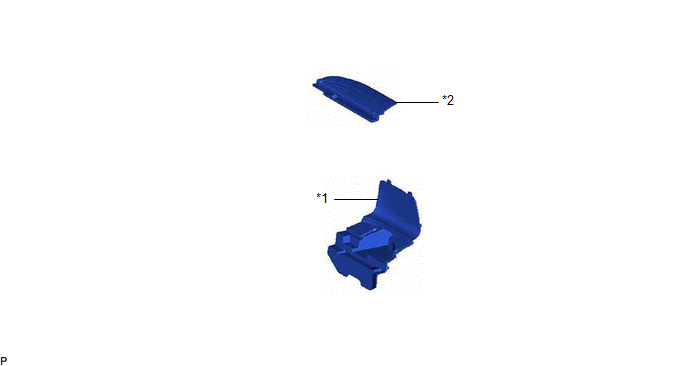

Fig 1: Black Out Tape (For Rear Door) Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BATTERY HOLE COVER	*2	REAR NO. 2 FLOOR BOARD

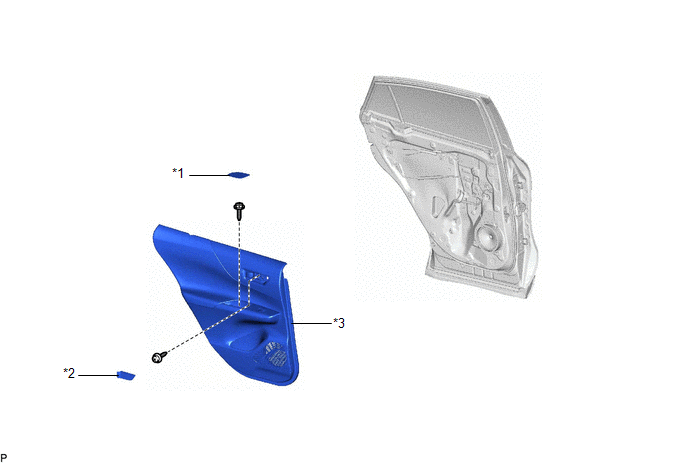

Fig 2: Black Out Tape (For Rear Door) Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR DOOR ARMREST COVER	*2	REAR DOOR INSIDE HANDLE BEZEL
*3	REAR DOOR TRIM BOARD SUB-ASSEMBLY	-	-

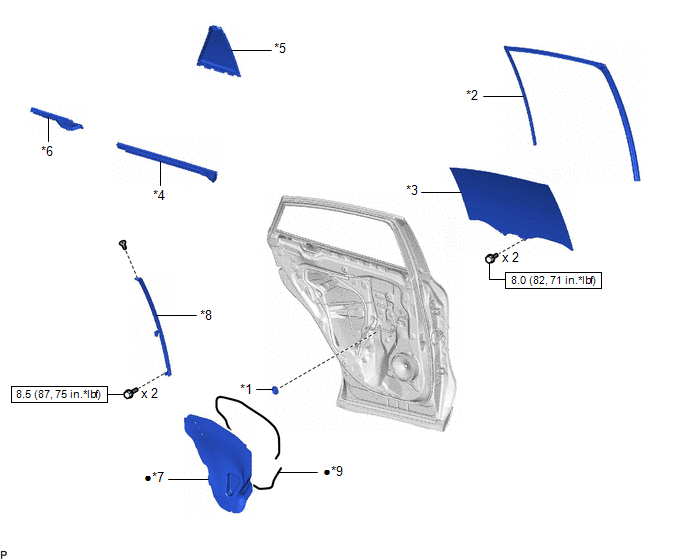

Fig 3: Black Out Tape (For Rear Door) Replacement Components With Torque Specifications (3 Of 4)

Callout	Description	Callout	Description
*1	HOLE PLUG	*2	REAR DOOR GLASS RUN
*3	REAR DOOR GLASS SUB-ASSEMBLY	*4	REAR DOOR INNER GLASS WEATHERSTRIP
*5	REAR DOOR QUARTER WINDOW GLASS	*6	REAR DOOR REAR BELT SEAL
*7	REAR DOOR SERVICE HOLE COVER	*8	REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY
*9	BUTYL TAPE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

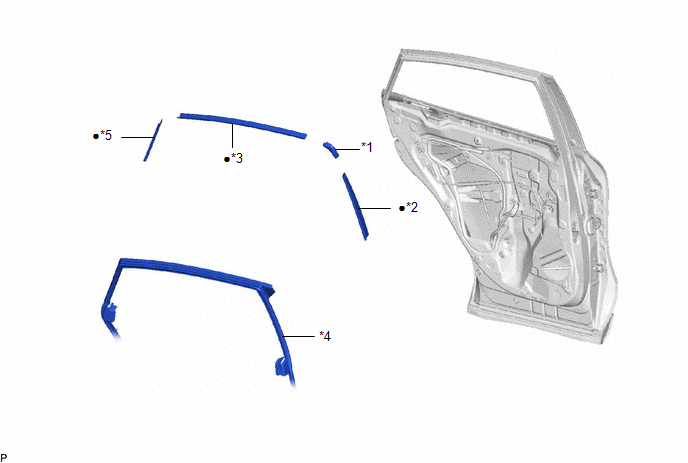

Fig 4: Black Out Tape (For Rear Door) Replacement Components (4 Of 4)

Callout	Description	Callout	Description
*1	REAR DOOR FRAME GARNISH	*2	REAR DOOR LOWER OUTSIDE STRIPE
*3	REAR DOOR OUTSIDE STRIPE	*4	REAR DOOR WEATHERSTRIP
*5	REAR INNER BLACK OUT TAPE	-	-
•	Non-reusable part	-	-
