Removal [07/2020 - 10/2022]: Procedure

  1. REMOVE FRONT WHEEL LH

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT FENDER LINER LH

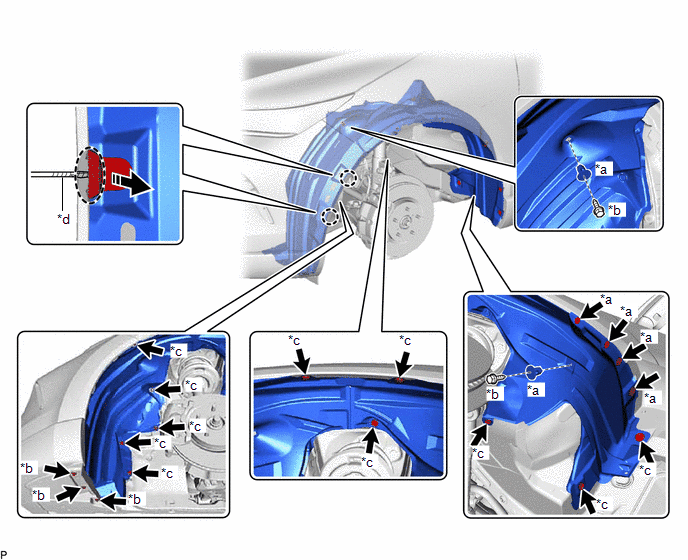

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws as shown in the illustration.
      GTY1013180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Grommet *b Screw
      *c Clip *d Protective Tape
      Insert Screwdriver Here Remove in this Direction
    2. Remove the 5 screws and 6 grommets.
    3. Remove the 11 clips and front fender liner LH.
  3. REMOVE WIRELESS DOOR LOCK BUZZER

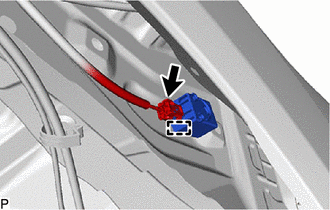

    1. Disconnect the connector.
      GTY1012615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to remove the wireless door lock buzzer.
