Removal [07/2020 - ]: Procedure

CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS
Refer to PROCEDURE - Step 2 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 2 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]

REMOVE LOWER STEERING COLUMN COVER

NOTE:

Removing the lower steering column cover in the incorrect order will cause the parts to break.

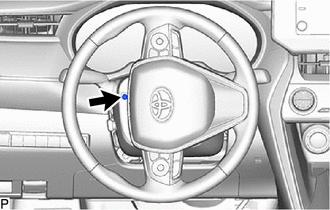

Turn the steering wheel assembly to the left and remove the screw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

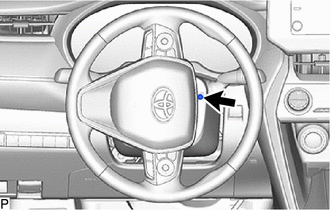

Turn the steering wheel assembly to the right and remove the screw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

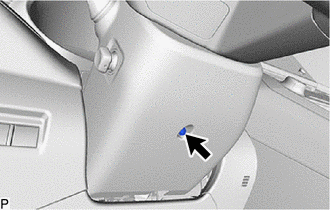

Remove the screw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

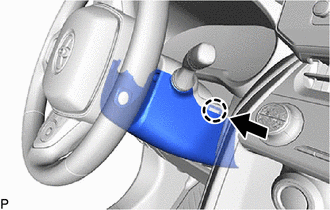

Push the left side of the lower steering column cover and disengage the claw as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Push

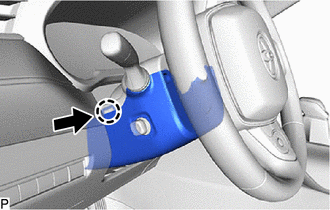

Push the right side of the lower steering column cover and disengage the claw as shown in the illustration to remove the lower steering column cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Push

REMOVE UPPER STEERING COLUMN COVER

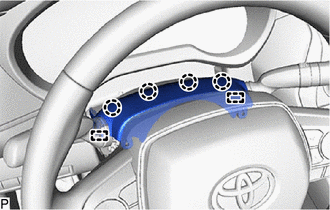

Disengage the 4 claws and 2 guides to separate the instrument cluster finish panel assembly from the upper steering column cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the claw to remove the upper steering column cover as shown in the illustration.

Remove in this Direction

REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

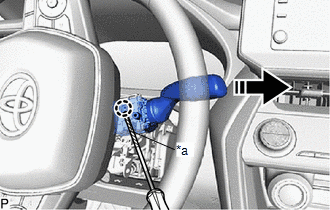

Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.

*a	Protective Tape
	Remove in this Direction

NOTE:

If the claw is pulled with excessive force, it may break.
