Removal [07/2020 - ]: Procedure

  1. REMOVE HYBRID VEHICLE CONTROL ECU

    Refer to REMOVAL [07/2020 - 10/2022] , or refer to REMOVAL [10/2022 - ]

  2. REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER

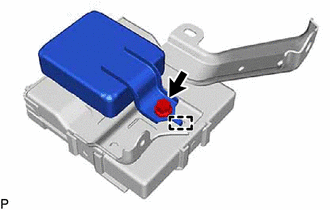

    1. Remove the bolt.
      GTY988824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the vehicle approaching speaker controller.
