Removal [07/2020 - 10/2022]: Procedure

  1. REMOVE CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 27

  2. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET

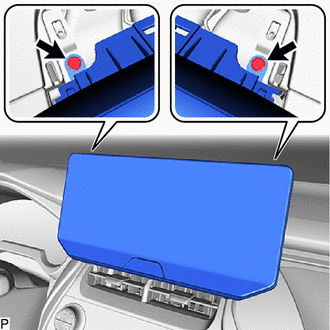

    1. Remove the 2 bolts.
      GTY988079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

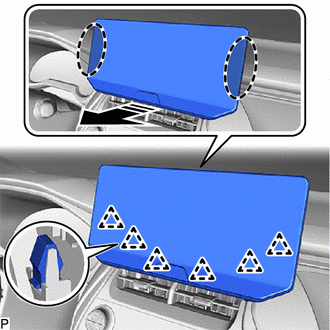

    2. Disengage the 6 clips as shown in the illustration.
      GTY987464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

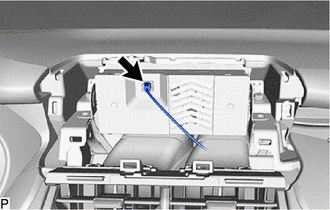

    3. Disconnect the connector.
      GTY987818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect each connector to remove the multi-display assembly with bracket.
  3. REMOVE NO. 3 RADIO RECEIVER BRACKET

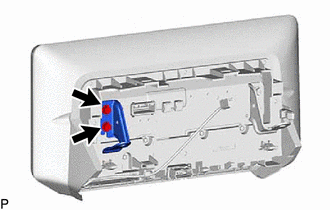

    1. Remove the 2 screws and No. 3 radio receiver bracket.
      GTY987819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 4 RADIO RECEIVER BRACKET

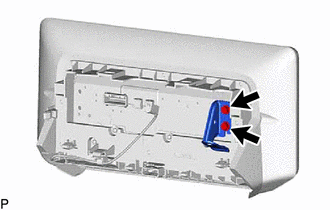

    1. Remove the 2 screws and No. 4 radio receiver bracket.
      GTY987821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 4

  6. REMOVE TRANSCEIVER ANTENNA BASE SUB-ASSEMBLY

    See step  2

  7. REMOVE MULTI-DISPLAY ASSEMBLY
