  1. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

  2. REMOVE UPPER CONSOLE BOX INSULATOR

    Refer to PROCEDURE - Step 31

  3. REMOVE WIRELESS CHARGER ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY

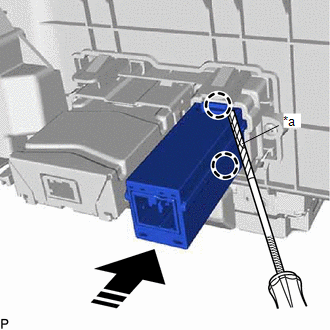

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the No. 1 stereo jack adapter assembly as shown in the illustration.
      GTY1121841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
  5. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY
