Removal [10/2022 - ]: Procedure

  1. REMOVE CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 27

  2. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 8 Inch Display)

    Refer to PROCEDURE - Step 3

  3. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 9

  4. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

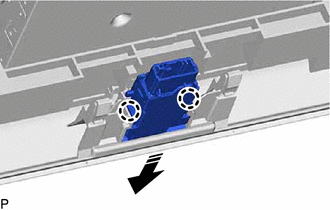

    1. Disengage the 2 claws and remove the hazard warning signal switch assembly as shown in the illustration.
      GTY987921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
