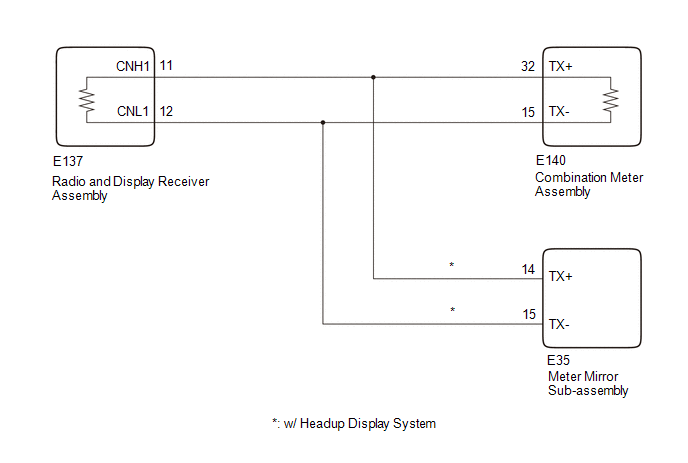

DTC B1321-87: Lost Communication with EMV Missing Message [10/2022 - ]: Wiring Diagram

  1. GTY1120637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
