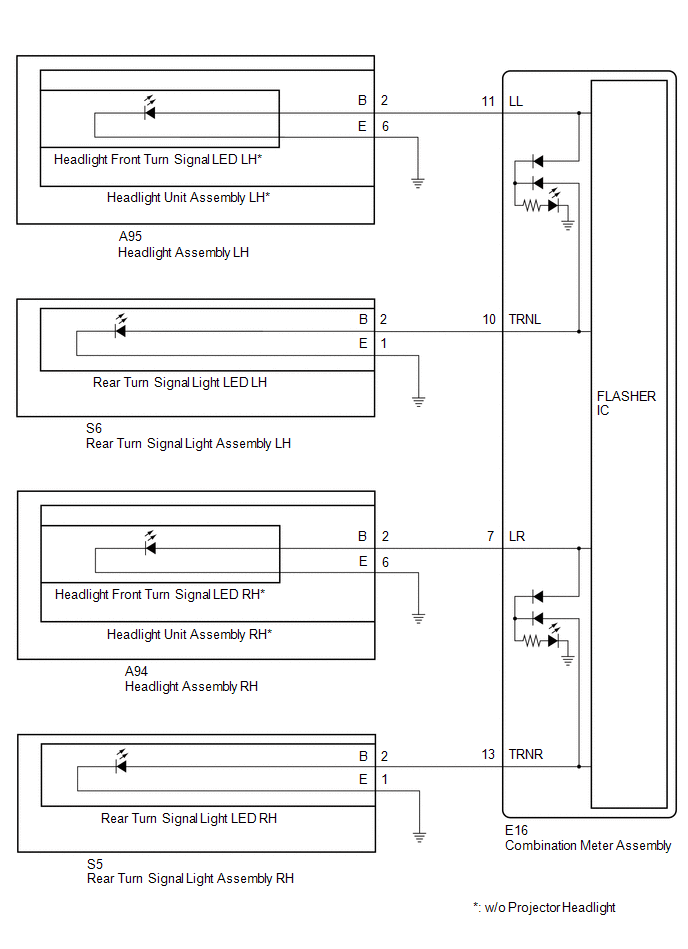

DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [07/2020 - ]: Wiring Diagram

GTY985106

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
