Removal [07/2020 - 10/2022]: Procedure

  1. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH

    Refer to REMOVAL [07/2020 - 10/2022]

  2. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  3. REMOVE FRONT SLIDING ROOF HOUSING MOUNTING BRACKET LH

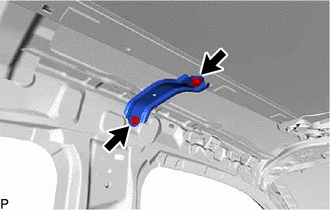

    1. Remove the 2 bolts and front sliding roof housing mounting bracket LH.
      GTY1012067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT SLIDING ROOF HOUSING MOUNTING BRACKET RH

    HINT:

    Use the same procedure described for the LH side.

  5. REMOVE REAR SLIDING ROOF HOUSING MOUNTING BRACKET LH

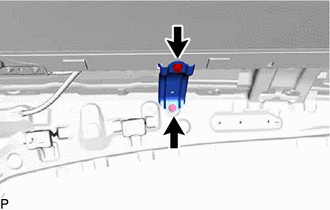

    1. Remove the 2 bolts and rear sliding roof housing mounting bracket LH.
      GTY1012066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR SLIDING ROOF HOUSING MOUNTING BRACKET RH

    HINT:

    Use the same procedure described for the LH side.

  7. REMOVE ROOF SUNSHADE HOUSING ASSEMBLY

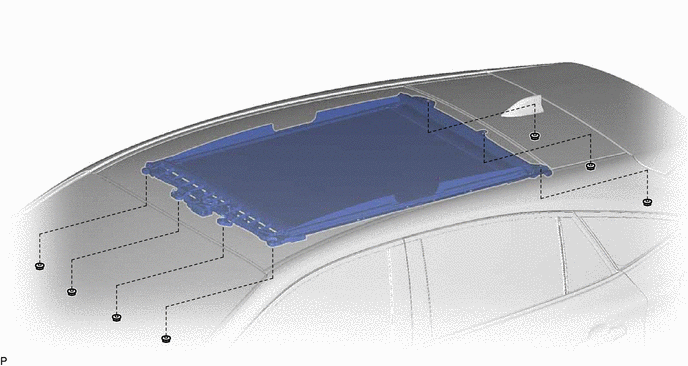

    1. Remove the 7 nuts and roof sunshade housing assembly.
      GTY1013506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the roof sunshade housing assembly or vehicle interior.

  8. REMOVE REAR ROOF HEADLINING GARNISH

    HINT:

    Perform this procedure only when replacement of the rear roof headlining garnish is necessary.

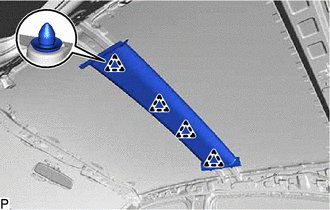

    1. Disengage the 4 clips to remove the rear roof headlining garnish.
      GTY1013249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
