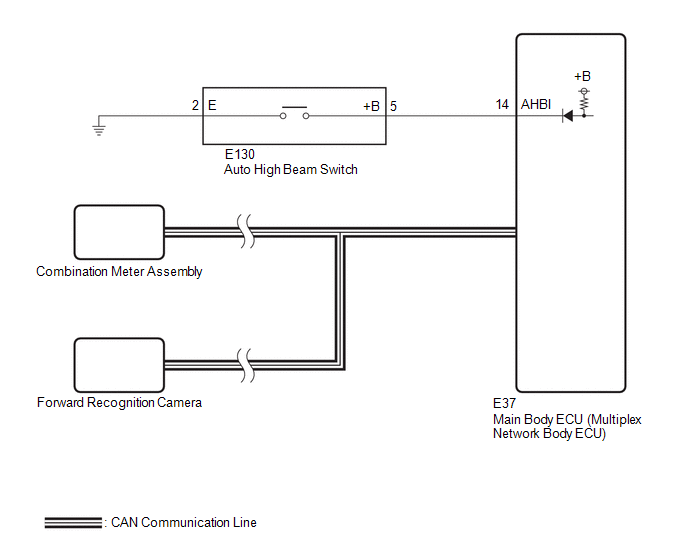

Automatic High Beam System does not Operate or Operation Indicator does not Illuminate [07/2020 - 10/2022]: Wiring Diagram

GTY987752

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
