Removal [10/2022 - ]: Procedure

  1. REMOVE STEERING WHEEL ASSEMBLY

    Refer to CAUTION / NOTICE / HINT

  2. REMOVE STEERING PAD SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE STEERING VIBRATION ECU
    1. Remove the 3 screws.

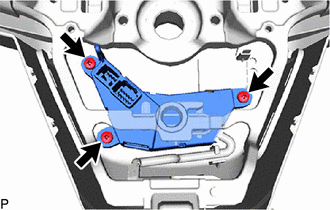

      GTY991560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Steering Heater:
      1. Disengage the clamp.

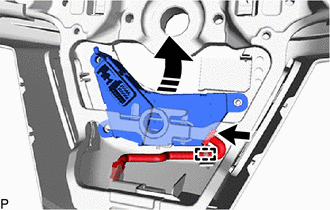

        GTY990407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
      2. Disconnect the connector and remove the steering vibration ECU as shown in the illustration.
    3. w/ Steering Heater:
      1. Disengage the clamp.

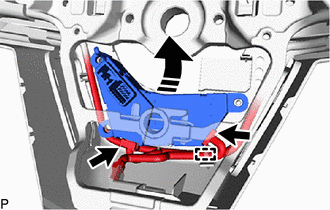

        GTY991147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
      2. Disconnect the 2 connectors and remove the steering vibration ECU as shown in the illustration.
