Removal [07/2020 - 10/2022]: Procedure

  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to REMOVAL [07/2020 - 10/2022]

  2. REMOVE FUEL DELIVERY GUARD

    Refer to PROCEDURE - Step 40

  3. INSTALL ENGINE HANGERS

    Refer to PROCEDURE - Step 41

  4. REMOVE STEERING GEAR HEAT INSULATOR

    Refer to PROCEDURE - Step 9

  5. DISCONNECT WIRE HARNESS

    Refer to PROCEDURE - Step 10

  6. REMOVE FRONT FRAME ASSEMBLY
    GTY977603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

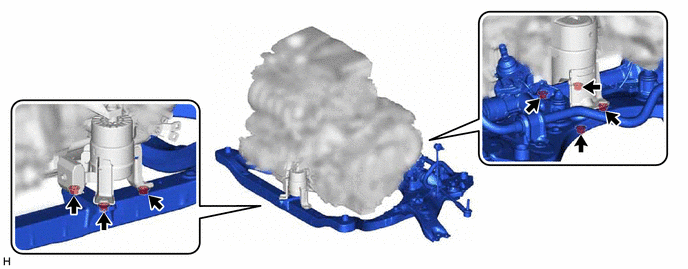

    1. Remove the 3 nuts and separate the front engine mounting insulator from the front frame assembly.
    2. Remove the 4 nuts and separate the rear engine mounting insulator from the front frame assembly.
  7. REMOVE FRONT STABILIZER BAR WITH BRACKET

    Refer to PROCEDURE - Step 14

  8. REMOVE RACK AND PINION POWER STEERING GEAR ASSEMBLY

    Refer to PROCEDURE - Step 15

  9. REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

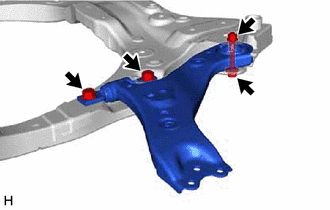

    1. Remove the 3 bolts, nut and front lower No. 1 suspension arm sub-assembly LH from the front frame assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY975170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the front lower arm bushing stopper from the front lower No. 1 suspension arm sub-assembly.
  10. REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  11. REMOVE NO. 2 EXHAUST PIPE SUPPORT BRACKET

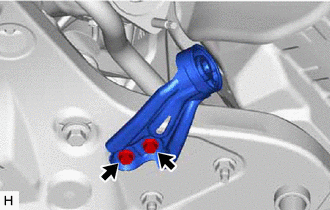

    1. Remove the 2 bolts and No. 2 exhaust pipe support bracket from the front frame assembly.
      GTY977612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
