Removal [10/2022 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    GTY571595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [10/2022 - ]

    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2022 - ]

  2. REMOVE REAR NO. 2 FLOOR BOARD (for RH Side)

    Refer to PROCEDURE - Step 2

  3. REMOVE BATTERY HOLE COVER

    Refer to PROCEDURE - Step 6

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If an airbag deploys for any reason, it may cause a serious injury.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 2

  6. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 3

  7. REMOVE REAR NO. 3 FLOOR BOARD (for LH Side)

    Refer to PROCEDURE - Step 5

  8. REMOVE REAR SEAT HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 3

  9. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 4

  10. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 5

  11. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 6

  12. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 7

  13. REMOVE REAR SEATBACK ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 8

  14. REMOVE REAR SEATBACK ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 9

  15. REMOVE SPARE WHEEL COVER STOPPER

    Refer to PROCEDURE - Step 7

  16. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 31

  17. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

    Refer to PROCEDURE - Step 32

  18. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 17

  19. REMOVE NO. 3 BATTERY SERVICE COVER BOARD

    Refer to PROCEDURE - Step 20

  20. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
    1. Disconnect the rear door opening trim weatherstrip.
  21. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

    See step  11

  22. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 35

  23. REMOVE REAR SEAT SIDE GARNISH

    Refer to PROCEDURE - Step 37

  24. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 40

  25. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 1

  26. REMOVE BATTERY HOLE COVER (for RH Side)

    Refer to PROCEDURE - Step 6

  27. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 40

  28. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 42

  29. REMOVE REAR SEAT OUTER BELT ASSEMBLY WITH BRACKET (for LH Side)
    1. Remove the bolt to disconnect the floor anchor of the rear seat outer belt assembly.
      GTY1012005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.

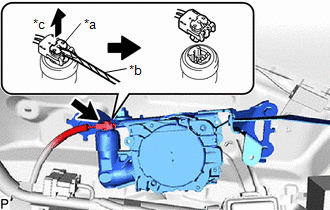

      GTY1117933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Locking Button
      *b Protective Tape
      *c Release

      HINT:

      Tape the screwdriver tip before use.

    3. Remove the 3 bolts.

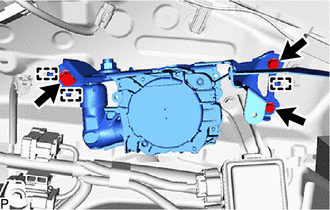

      GTY1113031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 3 guides to remove the rear seat outer belt assembly with bracket.
  30. REMOVE REAR SEAT OUTER BELT ASSEMBLY WITH BRACKET (for RH Side)
    1. Remove the bolt to disconnect the floor anchor of the rear seat outer belt assembly.

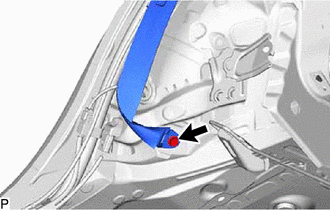

      GTY1113034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts.

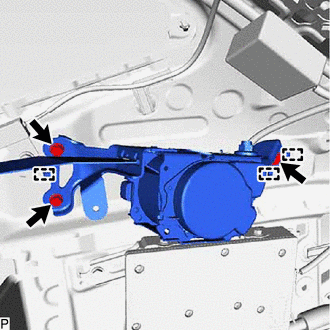

      GTY1113032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 3 guides.
    4. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.

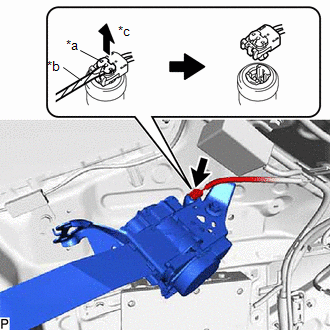

      GTY1116829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Locking Button
      *b Protective Tape
      *c Release

      HINT:

      Tape the screwdriver tip before use.

    5. Remove the rear seat outer belt assembly with bracket.
  31. REMOVE REAR SEAT OUTER BELT ASSEMBLY
    1. Hold the rear seat outer belt assembly with bracket in a vise between aluminum plates.
      NOTE:

      Do not overtighten the vise.

    2. Remove the nut.

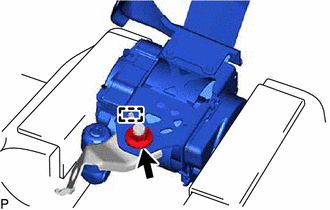

      GTY1114400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the guide to remove the rear seat outer belt assembly from the outer belt anchor bracket sub-assembly.
