Removal [07/2020 - 12/2021]: Procedure

  1. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 3

  3. REMOVE REAR NO. 2 FLOOR BOARD (for RH Side)

    Refer to PROCEDURE - Step 4

  4. REMOVE REAR NO. 3 FLOOR BOARD (for LH Side)

    Refer to PROCEDURE - Step 5

  5. REMOVE REAR SEAT HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 3

  6. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 4

  7. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 5

  8. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 6

  9. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 7

  10. REMOVE REAR SEATBACK ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 8

  11. REMOVE REAR SEATBACK ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 9

  12. REMOVE SPARE WHEEL COVER STOPPER

    Refer to PROCEDURE - Step 7

  13. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 31

  14. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

    Refer to PROCEDURE - Step 32

  15. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 17

  16. REMOVE NO. 3 BATTERY SERVICE COVER BOARD

    Refer to PROCEDURE - Step 20

  17. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
    1. Disconnect the rear door opening trim weatherstrip.
  18. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

    See step  11

  19. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 35

  20. REMOVE REAR SEAT SIDE GARNISH

    Refer to PROCEDURE - Step 37

  21. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 40

  22. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 1

  23. REMOVE BATTERY HOLE COVER (for RH Side)

    Refer to PROCEDURE - Step 6

  24. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 41

  25. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 42

  26. REMOVE REAR SEAT OUTER BELT ASSEMBLY WITH BRACKET

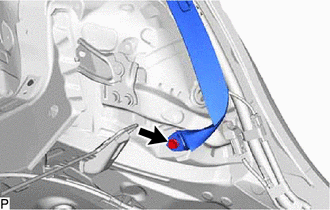

    1. Remove the bolt to disconnect the floor anchor of the rear seat outer belt assembly.
      GTY1012005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

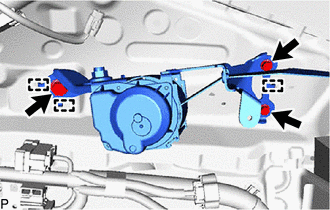

    2. Remove the 3 bolts.
      GTY1012008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 3 guides to remove the rear seat outer belt assembly with bracket.
  27. REMOVE REAR SEAT OUTER BELT ASSEMBLY
    1. Hold the rear seat outer belt assembly with bracket in a vise between aluminum plates.
      NOTE:

      Do not overtighten the vise.

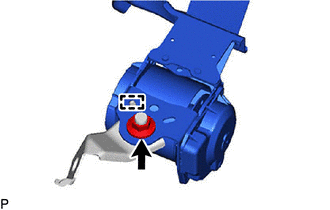

    2. Remove the nut.
      GTY1012014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the guide to remove the rear seat outer belt assembly from the outer belt anchor bracket sub-assembly.
