Installation [12/2021 - ]: Procedure

  1. INSTALL REAR SEAT OUTER BELT ASSEMBLY
    1. Secure the outer belt anchor bracket sub-assembly in a vise between aluminum plates.
      NOTE:

      Do not overtighten the vise.

    2. Engage the guide.
    3. Install the rear seat outer belt assembly to the outer belt anchor bracket sub-assembly with the nut.

      Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

  2. INSTALL REAR SEAT OUTER BELT ASSEMBLY WITH BRACKET (for LH Side)
    1. Engage the 3 guides and temporarily install the rear seat outer belt assembly with bracket with the 3 bolts.

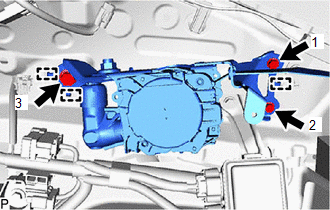

      GTY1115267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear seat outer belt assembly with bracket with the 3 bolts.

      Bolt (1), (2)

      Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

      Bolt (3)

      Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

      HINT:

      Tighten the bolts in the order shown in the illustration.

    3. Connect the pretensioner connector and lock the locking button as shown in the illustration.

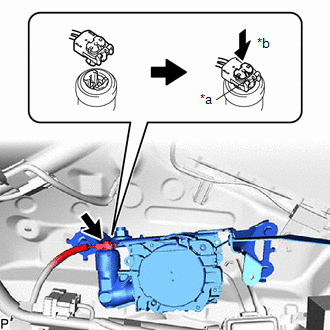

      GTY1118610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Locking Button
      *b Lock
      NOTE:

      Securely lock the locking button.

    4. Check that the ELR locks.
      GTY1012003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protruding Part
      1. Install the floor anchor of the rear seat outer belt assembly with the bolt.

        Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

        NOTE:

        Do not allow the anchor part of the rear seat outer belt assembly to overlap the protruding parts of the floor panel.

      2. With the rear seat outer belt assembly with bracket installed to the vehicle, check that the belt locks when it is pulled out quickly.
        NOTE:

        This check should be performed with the rear seat outer belt assembly with bracket installed to the vehicle.

  3. INSTALL REAR SEAT OUTER BELT ASSEMBLY WITH BRACKET (for RH Side)
    1. Connect the pretensioner connector and lock the locking button as shown in the illustration.

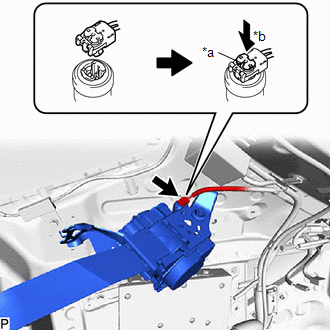

      GTY1118068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Locking Button
      *b Lock
      NOTE:

      Securely lock the locking button.

    2. Engage the 3 guides and temporarily install the rear seat outer belt assembly with bracket with the 3 bolts.

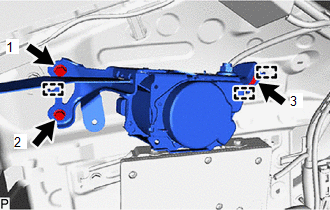

      GTY1117965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the rear seat outer belt assembly with bracket with the 3 bolts.

      Bolt (1), (2)

      Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

      Bolt (3)

      Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

      HINT:

      Tighten the bolts in the order shown in the illustration.

    4. Check that the ELR locks.

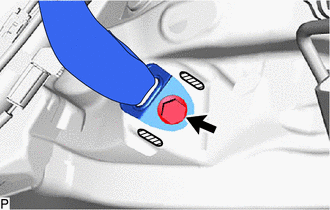

      GTY1113491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protruding Part
      1. Install the floor anchor of the rear seat outer belt assembly with the bolt.

        Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

        NOTE:

        Do not allow the anchor part of the rear seat outer belt assembly to overlap the protruding parts of the floor panel.

      2. With the rear seat outer belt assembly with bracket installed to the vehicle, check that the belt locks when it is pulled out quickly.
        NOTE:

        This check should be performed with the rear seat outer belt assembly with bracket installed to the vehicle.

  4. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 20 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 20 [10/2022 - ]

  5. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 22 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 22 [10/2022 - ]

  6. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 23 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 22 [10/2022 - ]

  7. INSTALL BATTERY HOLE COVER (for RH Side)

    Refer to PROCEDURE - Step 57 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 57 [10/2022 - ]

  8. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 1

  9. INSTALL REAR SEAT SIDE GARNISH

    Refer to PROCEDURE - Step 25 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 25 [10/2022 - ]

  10. INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 27 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 27 [10/2022 - ]

  11. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

    See step  1

  12. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 1

  13. INSTALL NO. 3 BATTERY SERVICE COVER BOARD

    Refer to PROCEDURE - Step 44 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 44 [10/2022 - ]

  14. INSTALL REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 45 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 45 [10/2022 - ]

  15. INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

    Refer to PROCEDURE - Step 31 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 31 [10/2022 - ]

  16. INSTALL REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 32 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 32 [10/2022 - ]

  17. INSTALL SPARE WHEEL COVER STOPPER

    Refer to PROCEDURE - Step 56 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 56 [10/2022 - ]

  18. INSTALL REAR SEATBACK ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 1

  19. INSTALL REAR SEATBACK ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 2

  20. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 3

  21. INSTALL REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 4

  22. INSTALL REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 5

  23. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 6

  24. INSTALL REAR SEAT HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 7

  25. INSTALL REAR NO. 3 FLOOR BOARD (for LH Side)

    Refer to PROCEDURE - Step 58 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 58 [10/2022 - ]

  26. INSTALL DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 60 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 60 [10/2022 - ]

  27. INSTALL TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 61 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 61 [10/2022 - ]

  28. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  29. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

    Refer to WORK PROCEDURE [07/2020 - 10/2022] , or refer to WORK PROCEDURE [10/2022 - ]

    HINT:

    When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [07/2020 - ]

  30. INSTALL BATTERY HOLE COVER

    Refer to PROCEDURE - Step 57 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 57 [10/2022 - ]

  31. INSTALL REAR NO. 2 FLOOR BOARD (for RH Side)

    Refer to PROCEDURE - Step 4
