Installation [07/2020 - 12/2021]: Procedure

  1. INSTALL REAR SEAT OUTER BELT ASSEMBLY
    1. Secure the outer belt anchor bracket sub-assembly in a vise between aluminum plates.
      NOTE:

      Do not overtighten the vise.

    2. Engage the guide.
    3. Install the rear seat outer belt assembly to the outer belt anchor bracket sub-assembly with the nut.

      Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

  2. INSTALL REAR SEAT OUTER BELT ASSEMBLY WITH BRACKET

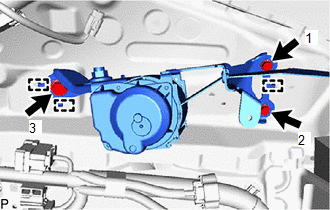

    1. Engage the 3 guides and temporarily install the rear seat outer belt assembly with bracket with the 3 bolts.
      GTY1013371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear seat outer belt assembly with bracket with the 3 bolts.

      Bolt (1), (2)

      Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

      Bolt (3)

      Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

      HINT:

      Tighten the bolts in the order shown in the illustration.

    3. Check that the ELR locks.
      GTY1012003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

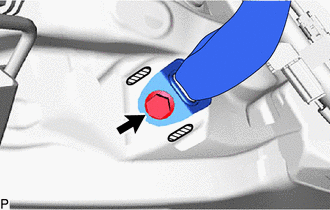

      Protruding Part
      1. Install the floor anchor of the rear seat outer belt assembly with the bolt.

        Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

        NOTE:

        Do not allow the anchor part of the rear seat outer belt assembly to overlap the protruding parts of the floor panel.

      2. With the rear seat outer belt assembly with bracket installed to the vehicle, check that the belt locks when it is pulled out quickly.
        NOTE:

        This check should be performed with the rear seat outer belt assembly with bracket installed to the vehicle.

  3. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 20

  4. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 22

  5. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 23

  6. INSTALL BATTERY HOLE COVER (for RH Side)

    Refer to PROCEDURE - Step 57

  7. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 1

  8. INSTALL REAR SEAT SIDE GARNISH

    Refer to PROCEDURE - Step 25

  9. INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 27

  10. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

    See step  1

  11. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 1

  12. INSTALL NO. 3 BATTERY SERVICE COVER BOARD

    Refer to PROCEDURE - Step 44

  13. INSTALL REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 45

  14. INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

    Refer to PROCEDURE - Step 31

  15. INSTALL REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 32

  16. INSTALL SPARE WHEEL COVER STOPPER

    Refer to PROCEDURE - Step 56

  17. INSTALL REAR SEATBACK ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 1

  18. INSTALL REAR SEATBACK ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 2

  19. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 3

  20. INSTALL REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 4

  21. INSTALL REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 5

  22. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 6

  23. INSTALL REAR SEAT HEADREST ASSEMBLY

    Refer to PROCEDURE - Step 7

  24. INSTALL REAR NO. 3 FLOOR BOARD (for LH Side)

    Refer to PROCEDURE - Step 58

  25. INSTALL REAR NO. 2 FLOOR BOARD (for RH Side)

    Refer to PROCEDURE - Step 59

  26. INSTALL DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 60

  27. INSTALL TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 61
