Removal [07/2020 - 10/2022]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    GTY571595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    ' PRECAUTION [07/2020 - 12/2021] , or refer to PRECAUTION [12/2021 - 10/2022]

    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

    WARNING:
    • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If an airbag deploys for any reason, it may cause a serious injury.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 9

  4. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP
    1. Disconnect the front door opening trim weatherstrip.
  5. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 17

  6. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
    1. Disconnect the rear door opening trim weatherstrip.
  7. REMOVE LAP BELT OUTER ANCHOR COVER

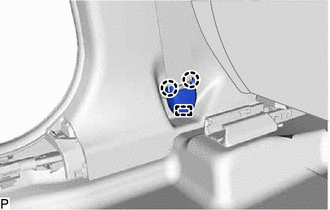

    1. Disengage the 2 claws and guide to remove the lap belt outer anchor cover.
      GTY1012056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

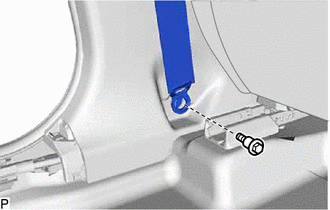

    1. Remove the bolt to disconnect the floor anchor of the front seat outer belt assembly.
      GTY1013187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE CENTER PILLAR LOWER GARNISH

    Refer to PROCEDURE - Step 27

  10. REMOVE CENTER PILLAR GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 29

  11. REMOVE FRONT SEAT OUTER BELT ASSEMBLY

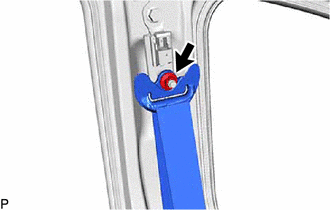

    1. Remove the nut and disconnect the shoulder anchor of the front seat outer belt assembly.
      GTY1012063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

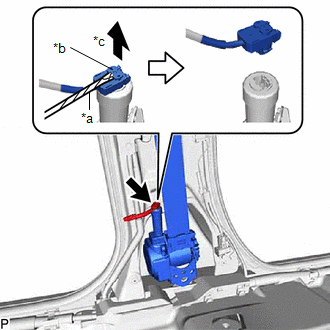

    2. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.
      GTY1012032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Locking Button
      *c Release

      HINT:

      Tape the screwdriver tip before use.

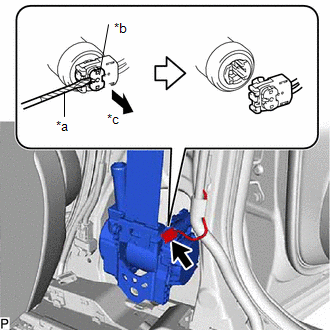

    3. for Front Passenger Seat Belt with Selectable Force Limiter:
      GTY1012540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Locking Button
      *c Release
      1. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the selectable force limiter connector.

        HINT:

        Tape the screwdriver tip before use.

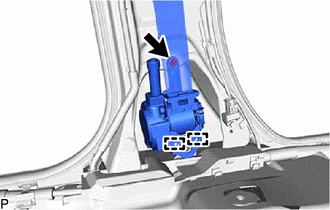

    4. Remove the bolt.
      GTY1012061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 2 guides to remove the front seat outer belt assembly.
  12. REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the front shoulder belt anchor adjuster assembly is necessary.

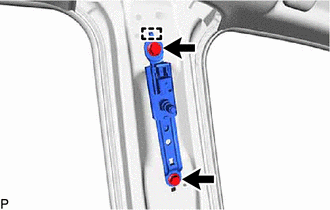

    1. Remove the 2 bolts.
      GTY1012062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the front shoulder belt anchor adjuster assembly.
