Removal [07/2020 - ]: Procedure

  1. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 2 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]

  2. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 3 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - ]

  3. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)
    1. Remove the rear seat headrest assembly.
  4. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)
    1. Remove the rear seat headrest assembly.
  5. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 4

  6. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 5

  7. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 6

  8. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 7

  9. REMOVE REAR SEATBACK ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 8

  10. REMOVE REAR SEATBACK ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 9

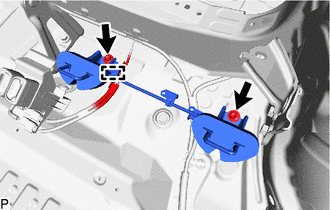

  11. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH
    1. Disengage the clamp.
      GTY1011986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and child restraint seat anchor bracket sub-assembly LH.
