Removal [07/2020 - 10/2022]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    GTY607029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [07/2020 - 12/2021] , or refer to PRECAUTION [12/2021 - 10/2022]

    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [07/2020 - 10/2022]

  2. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [07/2020 - 10/2022]

  3. REMOVE NO. 2 INSTRUMENT PANEL WIRE

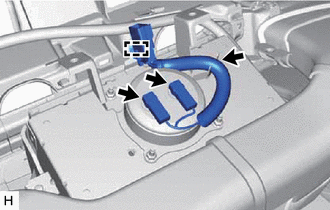

    1. Disengage the clamp.
      GTY1009591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Separate the No. 2 instrument panel wire from the wire harness clamp.
    3. Disconnect the 2 airbag connectors to remove the No. 2 instrument panel wire from the instrument panel passenger airbag assembly.
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

      HINT:

      Refer to How to Connect or Disconnect Airbag Connector.

      Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [07/2020 - 10/2022]

  4. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY
    WARNING:

    When storing the instrument panel passenger airbag assembly, keep the airbag deployment side facing upward.

    GTY797178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Deployment Side
    1. Remove the 2 screws.
      GTY835729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pry back the passenger airbag door retainer to disengage the 3 hooks.
      GTY813689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the deployment surface of the instrument panel passenger airbag assembly.

    3. Disengage the 3 hooks to remove the instrument panel passenger airbag assembly from the instrument panel safety pad sub-assembly.
