DTC B00D5-14: Restraint System Passenger Disable Indicator Circuit Short to Ground or Open [07/2020 - ]: Procedure

  1. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CONDITION
    1. Turn the ignition switch to ON.
    2. Check the passenger airbag ON/OFF indicator operation.

      HINT:

      Refer to the normal condition of the passenger airbag ON/OFF indicator.

      Refer to OPERATION CHECK [07/2020 - 12/2021] , or refer to OPERATION CHECK [12/2021 - 10/2022] , or refer to OPERATION CHECK [10/2022 - ]

      Result

      Result Proceed to
      Passenger airbag ON/OFF indicator "OFF" is always on. A
      Passenger airbag ON/OFF indicator "OFF" is always off. B

    Result:

    B

    See step  6

    Result:

    A

    See step  2

  2. CHECK CONNECTION OF CONNECTORS
    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    3. Check that the connectors are properly connected to the airbag sensor assembly and map light assembly.

      Result

      Proceed to
      The connectors are properly connected
      The connectors are not properly connected

    Result:

    The connectors are not properly connected

    CONNECT CONNECTORS PROPERLY

    Result:

    The connectors are properly connected

    See step  3

  3. CHECK CONNECTORS
    1. Disconnect the airbag sensor assembly connector.
      GTY1018544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Map Light Assembly
      *2 Airbag Sensor Assembly
      *3 Wire Harness
    2. Disconnect the map light assembly connector.
    3. Check that the connectors (on the airbag sensor assembly side and map light assembly side) are not damaged.

      Result

      Proceed to
      The connectors are not deformed or damaged
      The connectors are deformed or damaged

    Result:

    The connectors are deformed or damaged

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    The connectors are not deformed or damaged

    See step  4

  4. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO GROUND IN THE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      E64-34 (P-AB) or Q9-16 (P-AB) - Body ground Always 1 MΩ or higher

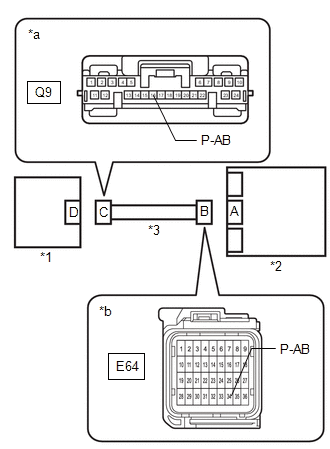

      GTY1011795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Map Light Assembly
      *2 Airbag Sensor Assembly
      *3 Wire Harness
      *a Front view of wire harness connector
      (to Map Light Assembly)
      *b Front view of wire harness connector
      (to Airbag Sensor Assembly)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. CHECK PASSENGER AIRBAG ON/OFF INDICATOR
    1. Connect the map light assembly connector.
      GTY973870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Map Light Assembly
      *2 Airbag Sensor Assembly
      *3 Wire Harness
    2. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    3. Turn the ignition switch to ON.
    4. Check the passenger airbag ON/OFF indicator operation.

      OK

      The passenger airbag ON/OFF indicator "OFF" does not come on.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL [07/2020 - 10/2022]  , or refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPLACE MAP LIGHT ASSEMBLY. Refer to  REMOVAL [07/2020 - ]

  6. CHECK CONNECTION OF CONNECTORS
    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    3. Check that the connectors are properly connected to the airbag sensor assembly and map light assembly.

      Result

      Proceed to
      The connectors are properly connected
      The connectors are not properly connected

    Result:

    The connectors are not properly connected

    CONNECT CONNECTORS PROPERLY

    Result:

    The connectors are properly connected

    See step  7

  7. CHECK CONNECTORS
    1. Disconnect the airbag sensor assembly connector.
      GTY1018544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Map Light Assembly
      *2 Airbag Sensor Assembly
      *3 Wire Harness
    2. Disconnect the map light assembly connector.
    3. Check that the connectors (on the airbag sensor assembly side and map light assembly side) are not damaged.

      Result

      Proceed to
      The connectors are not deformed or damaged
      The connectors are deformed or damaged

    Result:

    The connectors are deformed or damaged

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    The connectors are not deformed or damaged

    See step  8

  8. CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN THE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1011795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Map Light Assembly
      *2 Airbag Sensor Assembly
      *3 Wire Harness
      *a Front view of wire harness connector
      (to Map Light Assembly)
      *b Front view of wire harness connector
      (to Airbag Sensor Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      E64-34 (P-AB) - Q9-16 (P-AB) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  9

  9. CHECK HARNESS AND CONNECTOR (POWER SOURCE VOLTAGE)
    1. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
      GTY1010414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Map Light Assembly)
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      Q9-9 (RRID) - Body ground Ignition switch ON 11 to 14 V
    4. Turn the ignition switch off.
    5. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  10

  10. CHECK PASSENGER AIRBAG ON/OFF INDICATOR
    1. Connect the map light assembly connector.
      GTY1011782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Map Light Assembly
      *2 Airbag Sensor Assembly
      *3 Wire Harness
      *a Front view of wire harness connector
      (to Airbag Sensor Assembly)
    2. Using a service wire, connect terminal 34 (P-AB) of connector B and body ground.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

    3. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    4. Turn the ignition switch to ON.
    5. Check the passenger airbag ON/OFF indicator operation.

      OK

      The passenger airbag ON/OFF indicator "OFF" come on.

    6. Turn the ignition switch off.
    7. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    8. Disconnect the service wire from connector B.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL [07/2020 - 10/2022]  , or refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPLACE MAP LIGHT ASSEMBLY. Refer to  REMOVAL [07/2020 - ]
