DTC B009B-87: Left Side Restraints Sensor 5 Missing Message [07/2020 - 10/2022]: Procedure

1. Turn the ignition switch to ON, and wait for at least 60 seconds.
2. Check for DTCs.

   Body Electrical > SRS Airbag > Trouble Codes

   Result

   Proceed to
   DTCs B0093-87 and B009B-87 are output
   DTC B009B-87 is output
   DTCs B0093-87 and B009B-87 are not output

Result:

DTCs B0093-87 and B009B-87 are output

GO TO DTC B0093-87. Refer to  DTC B0093-87: Left Side Restraints Sensor 3 Missing Message [07/2020 - 10/2022]

Result:

DTCs B0093-87 and B009B-87 are not output

USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [07/2020 - ]

Result:

DTC B009B-87 is output

See step  2

1. Turn the ignition switch off.
2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
3. Check that the connectors are properly connected to the side No. 2 airbag sensor assembly LH and side airbag pressure sensor LH.

   OK

   The connectors are properly connected.

   Result

   Proceed to
   OK
   NG

Result:

NG

CONNECT CONNECTORS PROPERLY

Result:

OK

See step  3

1. Disconnect the side No. 2 airbag sensor assembly LH connector.

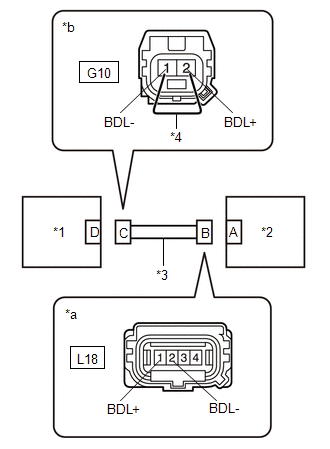

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Side Airbag Pressure Sensor LH
   *2	Side No. 2 Airbag Sensor Assembly LH
   *3	Wire Harness
   *4	Service Wire
   *a	Front view of wire harness connector (to Side No. 2 Airbag Sensor Assembly LH)
   *b	Front view of wire harness connector (to Side Airbag Pressure Sensor LH)

2. Disconnect the side airbag pressure sensor LH connector.
3. Using a service wire, connect terminals 2 (BDL+) and 1 (BDL-) of connector C.
   NOTE:

   Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   L18-1 (BDL+) - L18-2 (BDL-)	Always	Below 1 Ω

5. Disconnect the service wire from connector C.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

1. Connect the side No. 2 airbag sensor assembly LH connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Side Airbag Pressure Sensor RH
   *2	Side No. 2 Airbag Sensor Assembly LH
   *3	Wire Harness

2. Interchange the side airbag pressure sensor LH with RH and connect the connectors to them.
3. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
4. Turn the ignition switch to ON, and wait for at least 60 seconds.
5. Clear the DTCs stored in memory.

   Body Electrical > SRS Airbag > Clear DTCs

6. Turn the ignition switch off.
7. Turn the ignition switch to ON, and wait for at least 60 seconds.
8. Check for DTCs.

   Body Electrical > SRS Airbag > Trouble Codes

   Result

   Proceed to
   DTC B009B-87 is output
   DTC B009E-87 is output

   HINT:

   Codes other than DTCs B009B-87 and B009E-87 may be output at this time, but they are not related to this check.

9. Turn the ignition switch off.
10. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
11. Return the side airbag pressure sensor RH and LH to their original positions and connect the connectors to them.

Result:

DTC B009B-87 is output

REPLACE SIDE NO. 2 AIRBAG SENSOR ASSEMBLY LH. Refer to  REMOVAL [07/2020 - 10/2022]

Result:

DTC B009E-87 is output

REPLACE SIDE AIRBAG PRESSURE SENSOR LH. Refer to  REMOVAL [07/2020 - 10/2022]
