Installation [07/2020 - ]: Procedure

1. Using height adjustment attachments and plate lift attachments, place the engine assembly on a flat level surface.
   NOTE:

   • Using height adjustment attachments and plate lift attachments, keep the engine assembly level.
   • To prevent the No. 2 oil pan sub-assembly from deforming, do not place any attachments under the No. 2 oil pan sub-assembly of the engine assembly.
   • Using an engine sling device and engine lift, secure the engine assembly before servicing.
2. Apply MP grease to the lip of a new rear engine oil seal.
   NOTE:

   • Keep the lip free from foreign matter.
   • Do not allow MP grease to contact the dust seal.

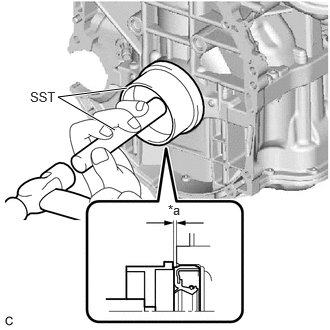

3. Using SST and a hammer, tap in the rear engine oil seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	-0.9 to 1.1 mm

   • SST: 09223-15030
   • SST: 09950-70010
     1. 09951-07150

   Standard Depth

   -0.9 to 1.1 mm (-0.0354 to 0.0433 in.) (From the edge of the cylinder block sub-assembly and stiffening crankcase assembly)

   NOTE:

   Do not tap in the rear engine oil seal at an angle.

1. Install the No. 1 crankshaft position sensor plate.

   HINT:

   Align the pin hole of the No. 1 crankshaft position sensor plate with the pin of the crankshaft.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, hold the crankshaft pulley assembly.
   • SST: 09213-54015
   • SST: 09330-00021

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Clean the bolt holes.
3. Apply adhesive to 2 or 3 threads at the end of each of 8 new bolts.

   Adhesive

   Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

4. Install the flywheel sub-assembly with the 8 bolts. Uniformly tighten the 8 bolts in the sequence shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 150 N*m (1530 kgf*cm, 111 ft.*lbf)

   NOTE:

   Do not start the engine for at least 1 hour after installing the flywheel sub-assembly.

1. Using SST, hold the crankshaft pulley assembly.
   • SST: 09213-54015
   • SST: 09330-00021

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the transmission input damper assembly to the flywheel sub-assembly with 6 new bolts. Uniformly tighten the 6 bolts in the order shown in the illustration.
   Fig 1: Transmission Input Damper Assembly Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

   NOTE:

   • Make sure that there is no oil on the transmission input damper assembly and flywheel sub-assembly.
   • Make sure to install the transmission input damper assembly in the correct direction.
   • Do not allow grease to contact the splines of the transmission input damper assembly and the input shaft.
