Removal [07/2020 - ]: Procedure

  1. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY
    1. Remove the 4 bolts, 2 screws, 6 clips and No. 2 engine under cover assembly.

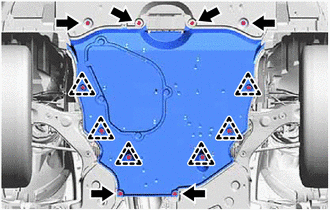

      GTY999954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 2 [12/2021 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]

  3. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 57

  4. REMOVE ENGINE OIL LEVEL SENSOR
    1. Disconnect the engine oil level sensor connector.
    2. Remove the clip from the engine oil level sensor.
      GTY771692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using an 8 mm socket wrench, remove the 2 bolts and engine oil level sensor from engine balancer assembly.
      GTY754900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
