Installation [07/2020 - 10/2022]: Procedure

1. Install a new gasket to the water inlet with thermostat sub-assembly.

   HINT:

   Be sure to clean the contact surfaces.

2. Using an 8 mm socket wrench, install the water inlet with thermostat sub-assembly with the 2 bolts.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

3. Connect the No. 7 water by-pass hose to the water inlet with thermostat sub-assembly and slide the clip to secure it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

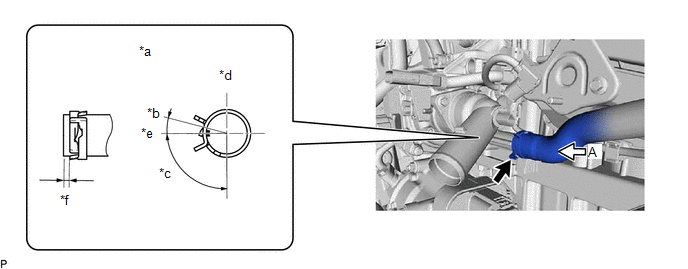

   *a	View A	*b	15°
   *c	90° (Tabs of Clip Installation Area)	*d	Upper Side of Vehicle
   *e	Front Side of Vehicle	*f	1 mm (0.0394 in.) or higher

   NOTE:

   Make sure that the tabs of the clip are within the area shown in the illustration.

4. Connect the water inlet with thermostat sub-assembly connector.

Refer to PROCEDURE - Step 34

Refer to INSTALLATION [07/2020 - 10/2022]

Refer to PROCEDURE - Step 2 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 2 [12/2021 - ]

Refer to PROCEDURE - Step 1
