Installation [07/2020 - 10/2022]: Procedure

1. Install a new EGR cooler gasket to the EGR cooler assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Claw

   NOTE:

   Make sure that the claws of the EGR cooler gasket are toward the EGR cooler assembly side.

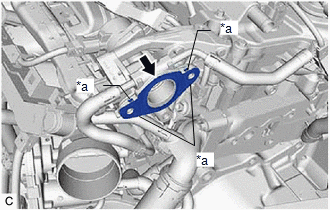

2. Install a new EGR valve gasket to the EGR valve assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Claw

   NOTE:

   Make sure that the claws of the EGR valve gasket are toward the EGR valve assembly side.

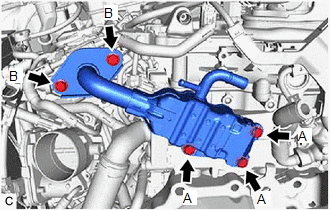

3. Temporarily install the EGR cooler assembly to the cylinder head sub-assembly and EGR valve assembly with the 5 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Tighten the 3 bolts (A).

   Torque: 24 N*m (245 kgf*cm, 18 ft.*lbf)

5. Tighten the 2 bolts (B).

   Torque: 24 N*m (245 kgf*cm, 18 ft.*lbf)

6. Connect the No. 3 water by-pass hose and No. 4 water by-pass hose to the EGR cooler assembly and slide the 2 clips to secure them.

Refer to INSTALLATION [07/2020 - ]

Refer to PROCEDURE - Step 2 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 2 [12/2021 - ]

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 5
