DTC P2530-14: Ignition Switch Run Position Circuit Short to Ground or Open [07/2020 - 12/2021]: Procedure
- CHECK HARNESS AND CONNECTOR (IG2 TERMINAL)
- Make sure that there is no looseness at the locking part and the connecting part of the connector.

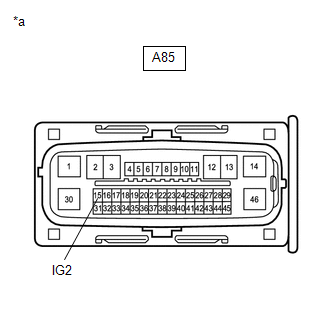

*a Front view of wire harness connector
(to No. 2 Skid Control ECU (Brake Actuator Assembly))OK
The connector is securely connected.
- Disconnect the A85 No. 2 skid control ECU (brake actuator assembly) connector.
- Check both the connector case and the terminals for deformation and corrosion.
OK
No deformation or corrosion.
- Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition A85-15 (IG2) - Body ground Ignition switch ON 11 to 14 V Result
Result Proceed to 11 to 14 V. A Below 11 V. B
Result:
A
REPLACE BRAKE ACTUATOR ASSEMBLY. Refer to REMOVAL [07/2020 - 10/2022]
Result:
B
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Make sure that there is no looseness at the locking part and the connecting part of the connector.
