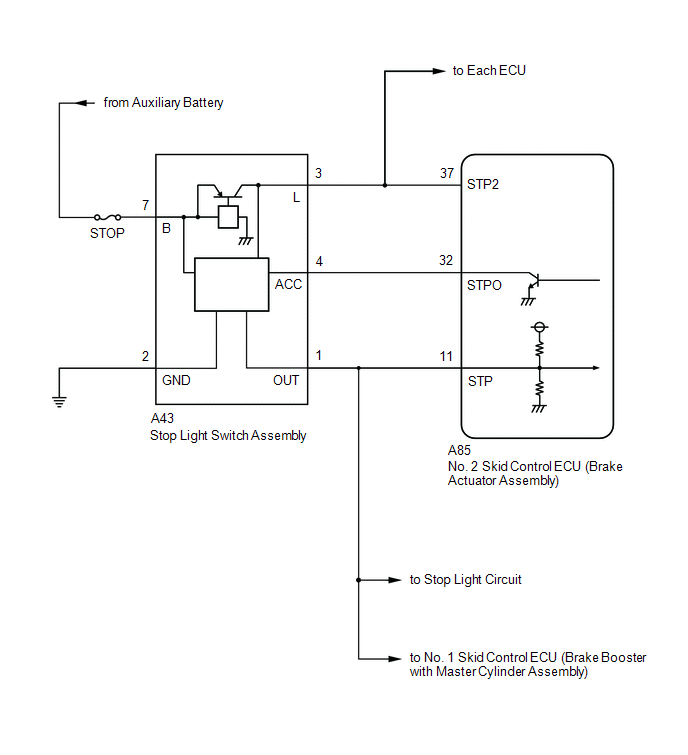

DTC C1380-7E: Stop Lamp Relay Actuator Stuck On [07/2020 - ]: Wiring Diagram

GTY974659

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
