Removal [07/2020 - 10/2022]: Procedure

  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL

    Refer to PROCEDURE - Step 5

  2. REMOVE FRONT DOOR ARMREST COVER

    Refer to PROCEDURE - Step 6

  3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  4. REMOVE OUTER MIRROR INSTALL HOLE COVER
    1. Disconnect the connector.

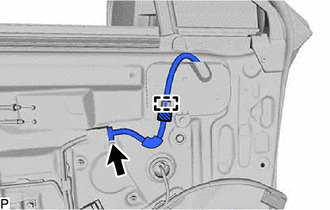

      GTY1014476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the screw.

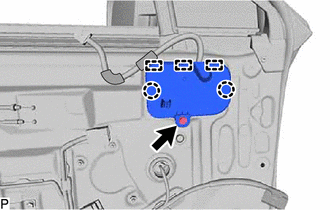

      GTY1014483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 claws and 3 guides to remove the outer mirror install hole cover.
  5. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY
    1. Remove the 3 nuts.

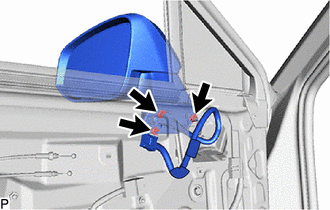

      GTY1014468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and 2 guides to remove the outer rear view mirror assembly.

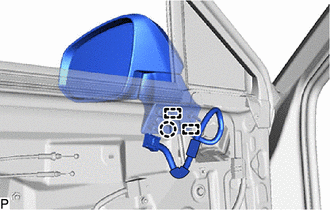

      GTY1014469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
