Removal [07/2020 - ]: Procedure

  1. REMOVE ROOF DRIP SIDE FINISH MOULDING (w/o Roof Rack)
    1. for Normal Roof:
      1. Apply protective tape around the roof drip side finish moulding as shown in the illustration.

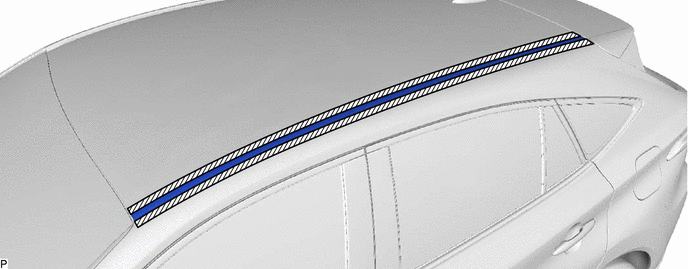

        GTY1013542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Protective Tape - -
    2. Using a moulding remover, disengage the 2 clips and remove the roof drip side finish moulding.

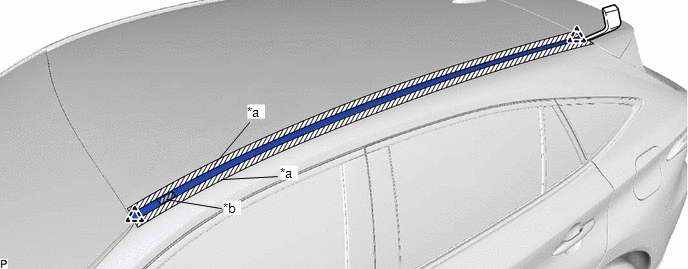

      GTY1014242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape *b Double-sided Tape
      NOTE:
      • Do not remove the roof drip side finish moulding clip.
      • If a roof drip side finish moulding clip is damaged or falls off, replace it with a new one.
  2. REMOVE REAR ROOF DRIP SIDE FINISH MOULDING (w/o Roof Rack)
    1. for Glass Roof:
      1. Apply protective tape around the rear roof drip side finish moulding as shown in the illustration.

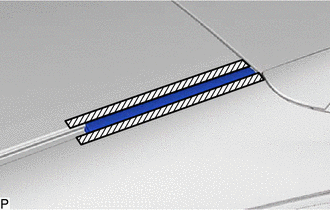

        GTY1014038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Protective Tape
      2. Using a moulding remover, disengage the 2 clips and remove the rear roof drip side finish moulding.

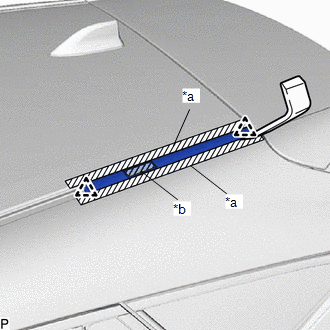

        GTY1014587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        *b Double-sided Tape
        NOTE:
        • Do not remove the roof drip side finish moulding clip.
        • If the roof drip side finish moulding clip is damaged or falls out, replace it with a new one.
  3. REMOVE REAR ROOF DRIP SIDE FINISH MOULDING (w/ Roof Rack)
    1. Apply protective tape around the rear roof drip side finish moulding as shown in the illustration.

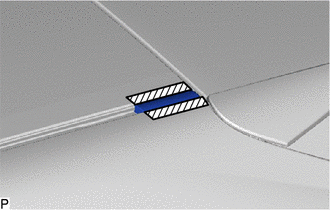

      GTY1013854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a moulding remover, disengage the clip and remove the rear roof drip side finish moulding.
      NOTE:
      • Do not remove the roof drip side finish moulding clip.
      • If the roof drip side finish moulding clip is damaged or falls out, replace it with a new one.

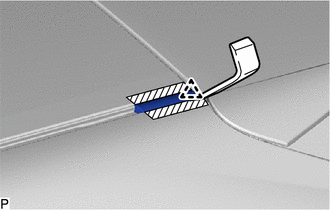

      GTY1014000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
