Removal [07/2020 - ]: Procedure

  1. REMOVE HOLE PLUG

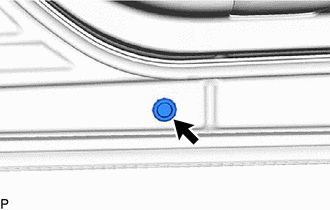

    1. Remove the hole plug.
      GTY1014490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY
    1. Remove the nut.
      GTY1014488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

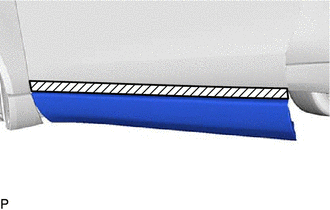

    2. Apply protective tape around the front door lower outside moulding sub-assembly as shown in the illustration.
      GTY1013550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

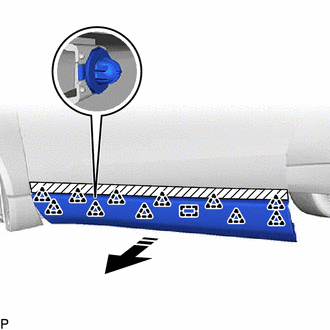

    3. Disengage the 11 clips and guide to remove the front door lower outside moulding sub-assembly as shown in the illustration.
      GTY1013648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
