Reassembly [07/2020 - ]: Procedure

HINT:

When installing the front door upper outside moulding pad, heat the front door lower outside moulding using a heat light.

Heating Temperature

WARNING:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Clean the front door lower outside moulding.
   1. Using a heat light, heat the front door lower outside moulding surface.
   2. Remove any remaining double-sided tape from the front door lower outside moulding.
   3. Wipe off any tape adhesive residue with cleaner.
2. Using a brush or felt, apply primer or equivalent to the front door upper outside moulding pad installation area.
   NOTE:

   • Use a clean brush or felt.
   • Do not touch the front door lower outside moulding until the primer has dried.
3. Install a new front door upper outside moulding pad.
   1. Using a heat light, heat the front door lower outside moulding surface.
   2. Remove the release paper from the front door upper outside moulding pad.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

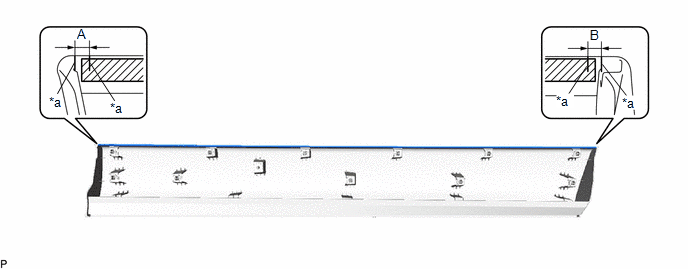

   3. Install the front door upper outside moulding pad as shown in the illustration.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a

      Line

      -

      -

      Standard Measurement

      Area	Measurement	Area	Measurement
      A	3.0 mm (0.118 in.)	B	3.0 mm (0.118 in.)

      HINT:

      Press the front door upper outside moulding pad firmly to install it.
