Removal [07/2020 - 10/2022]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [07/2020 - 10/2022]

  2. REMOVE REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 2

  3. REMOVE BATTERY HOLE COVER

    Refer to PROCEDURE - Step 6

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  5. REMOVE FRONT DOOR INSIDE HANDLE BEZEL

    Refer to PROCEDURE - Step 5

  6. REMOVE FRONT DOOR ARMREST COVER

    Refer to PROCEDURE - Step 6

  7. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  8. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP

    Refer to PROCEDURE - Step 14

  9. REMOVE FRONT DOOR FRONT BELT SEAL

    Refer to PROCEDURE - Step 16

  10. REMOVE FRONT DOOR WEATHERSTRIP CLIP

    Refer to PROCEDURE - Step 17

  11. REMOVE FRONT DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 18

  12. REMOVE HOLE PLUG

    Refer to PROCEDURE - Step 20

  13. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21

  14. REMOVE FRONT DOOR GLASS RUN

    Refer to PROCEDURE - Step 23

  15. REMOVE FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY

    Refer to PROCEDURE - Step 26

  16. REMOVE FRONT DOOR FIX WINDOW GLASS

    Refer to PROCEDURE - Step 27

  17. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY

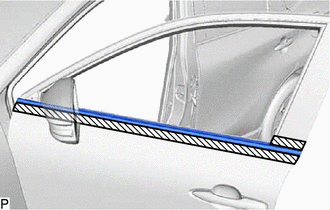

    1. Apply protective tape around the front door belt moulding assembly as shown in the illustration.
      GTY1014769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

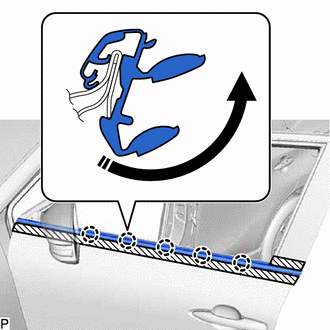

    2. Disengage the 5 claws as shown in the illustration.
      GTY1013635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

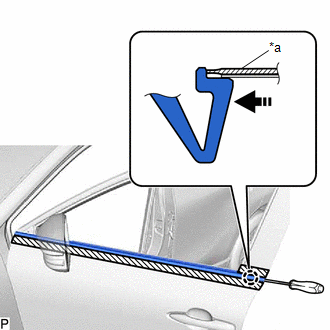

    3. Using a thin-bladed screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration.
      GTY1013698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Thin-bladed Screwdriver with its Tip Wrapped with Protective Tape
      Push in this Direction

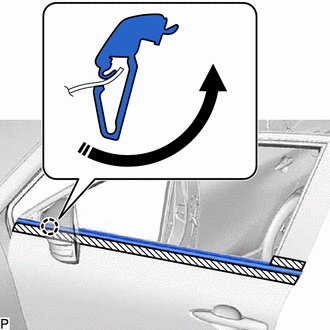

    4. Disengage the claw as shown in the illustration to remove the front door belt moulding assembly.
      GTY1014393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
